Re: [fluka-discuss]: Error when creating source.f executable

From: Srinidhi Bheesette <srinidhi.bheesette_at_cern.ch>
Date: Thu, 25 May 2017 11:41:09 +1200

Hi Joachim,

Thanks for your mail.

I tried the command you mentioned but it gave me an error. However this
worked:

$FLUPRO/flutil/rfluka -e source_shri -N0 -M1 ex08.inp

The run doesn't do through and I spot this error in log file

[image: Inline images 2]

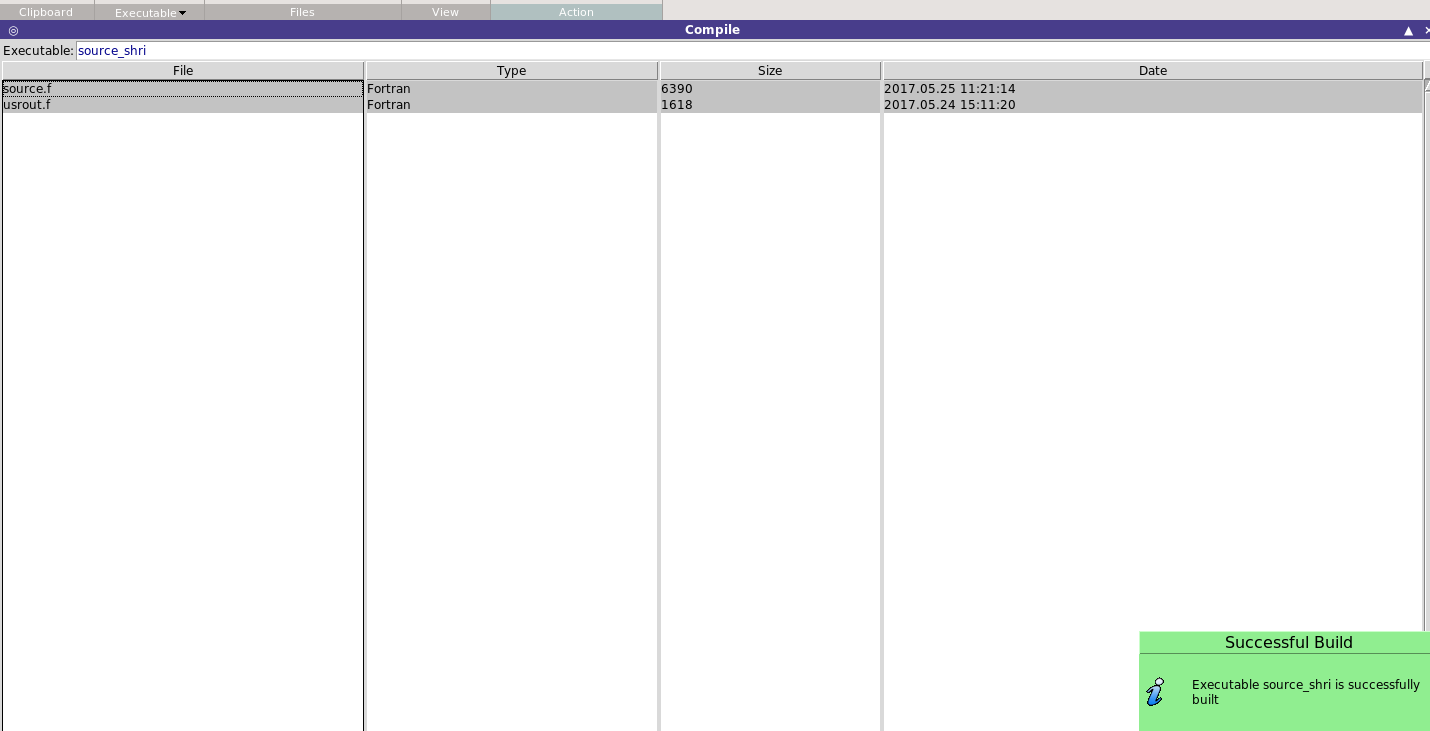

But, I compiled the source and executable using flair and its completes
without any error.

[image: Inline images 3]

I have attached the source.f with this mail. Could you please let me know
where I am going wrong.

Yes I have included the SOURCE, USRICALL and USROCALL in the *.inp file
(attached).

Thanks in advance.

Cheers,
Shri

(Srinidhi Bheesette)

On 24 May 2017 at 18:25, Joachim Vollaire <joachim.vollaire_at_cern.ch> wrote:

> Hi
>
>
>
> Everything can be done either from flair or from the terminal.
>
>
>
> From the terminal use –e to specify the fluka executable you created (and
> not the default flukahp in the $FLUPRO directory):
>
> $FLUPRO/flutil/rfluka -N0 -M5 "myexample.inp –e yourflukaexec
>
>
>
> Or from flair in the run tab, there is an Exe button which allow you to
> select your customized executable.
>
>
>
> In the input file you must add a SOURCE card, otherwise the routine will
> never be called when primary particles are generated. If you don’t do it,
> default value or values specified in the cards used to define the source as
> BEAM or BEAMPOS will be used instead of the logic you have defined in the
> source routine.
>
> Hoping this help
>
> Greetings
>
> Joachim
>
>
>
> *From:* owner-fluka-discuss_at_mi.infn.it [mailto:owner-fluka-discuss_at_
> mi.infn.it] *On Behalf Of *Srinidhi Bheesette
> *Sent:* 19 May 2017 01:13
> *To:* Francesco Cerutti <Francesco.Cerutti_at_cern.ch>
> *Cc:* FLUKA discussion <fluka-discuss_at_fluka.org>
> *Subject:* Re: [fluka-discuss]: Error when creating source.f executable
>
>
>
> Hi Francesco,
>
>
>
> Thanks for your reply.
>
> Yes, I realised I was copying the odd character from the FLUKA tutorial
> slides.
>
>
>
> It works!
>
>
>
> But I have few more doubts:
>
> 1. How do I attach the executable file created by the fair run?
> 2. Do I need to specify a source routine in the input file?
> 3. Or can I manually run the simulation using
> the $FLUPRO/flutil/rfluka -N0 -M5 "myexample.inp" from the terminal?
>
> I have attached the input file, source.f and the *.dat file with this mail.
>
>
>
> Thanks in advance.
>
>
>
>
> Cheers,
>
> Shri
>
>
>
> (Srinidhi Bheesette)
>
>
>
> On 17 May 2017 at 19:13, Francesco Cerutti <Francesco.Cerutti_at_cern.ch>
> wrote:
>
>
> Hi
>
> the problem is with the character you used on your command line before "m"
> and "o", it's not a regular hyphen but something else.
>
> If you read the outcome, you can see:
> g77: -m: No such file or directory
> since your "-" is actually an odd character
>
> Best wishes
>
> Francesco
>
> **************************************************
> Francesco Cerutti
> CERN-EN/STI
> CH-1211 Geneva 23
> Switzerland
> tel. ++41 22 7678962
> fax ++41 22 7668854
>
> On Wed, 17 May 2017, Srinidhi Bheesette wrote:
>
> > Hi all,
> > I am trying to compile a source.f file. The object file gets generated
> > without any error but then when I generate the executable file I am
> getting
> > I get the following messages:
>
> > Inline images 1
> >
> > Could you let me know where I am going wrong?
> > Help would be greatly appreciated.
> >
> > Thank you.
> >
> > Cheers,
> > Shri
> >
> > (Srinidhi Bheesette)
> >
> >
>
>
>
