Hi Jiasen,
with two cylinders and two or more cutting planes like:
* Void sphere
SPH void 0.0 0.0 0.0 1000000.0
* Outer surface of cylindrical target
RCC cylout 0.0 0.0 0.0 0.0 0.0 10.0 5.0
* Inner surface
RCC cylin 0.0 0.0 0.0 0.0 0.0 10.0 3.0
* Cutting planes
XZP cut1 0.0
PLA cut2 1.0 1.0 0.0 0.0 0.0 0.0
...
VOID 5 +void -cylout | +void -cut1 | +void +cut2 | +cylin
TARGET 5 +cylout -cylin +cut1 -cut2

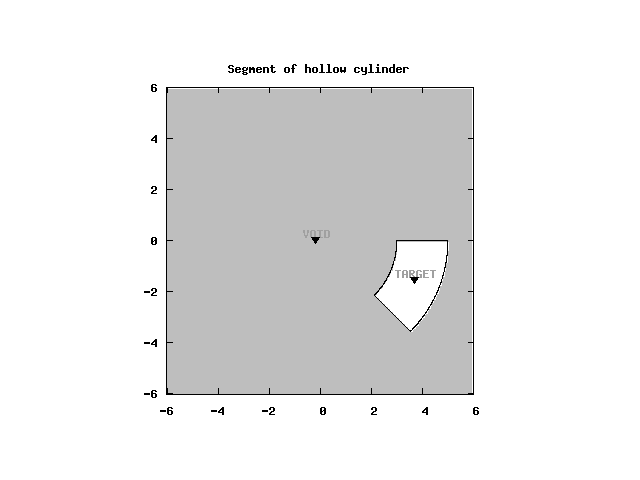

you will get a plot like the attached one
Vasilis
Jiasen Ma wrote:
> Dear All,
>
> How do I define a arbitrary phi segment of a hollow
> cylindrical tube? I have other detector elements close to
> those tubes and don't want too many intersections.
> Thanks.
>
> Jiasen
>
>
