Dear Kai Tao,

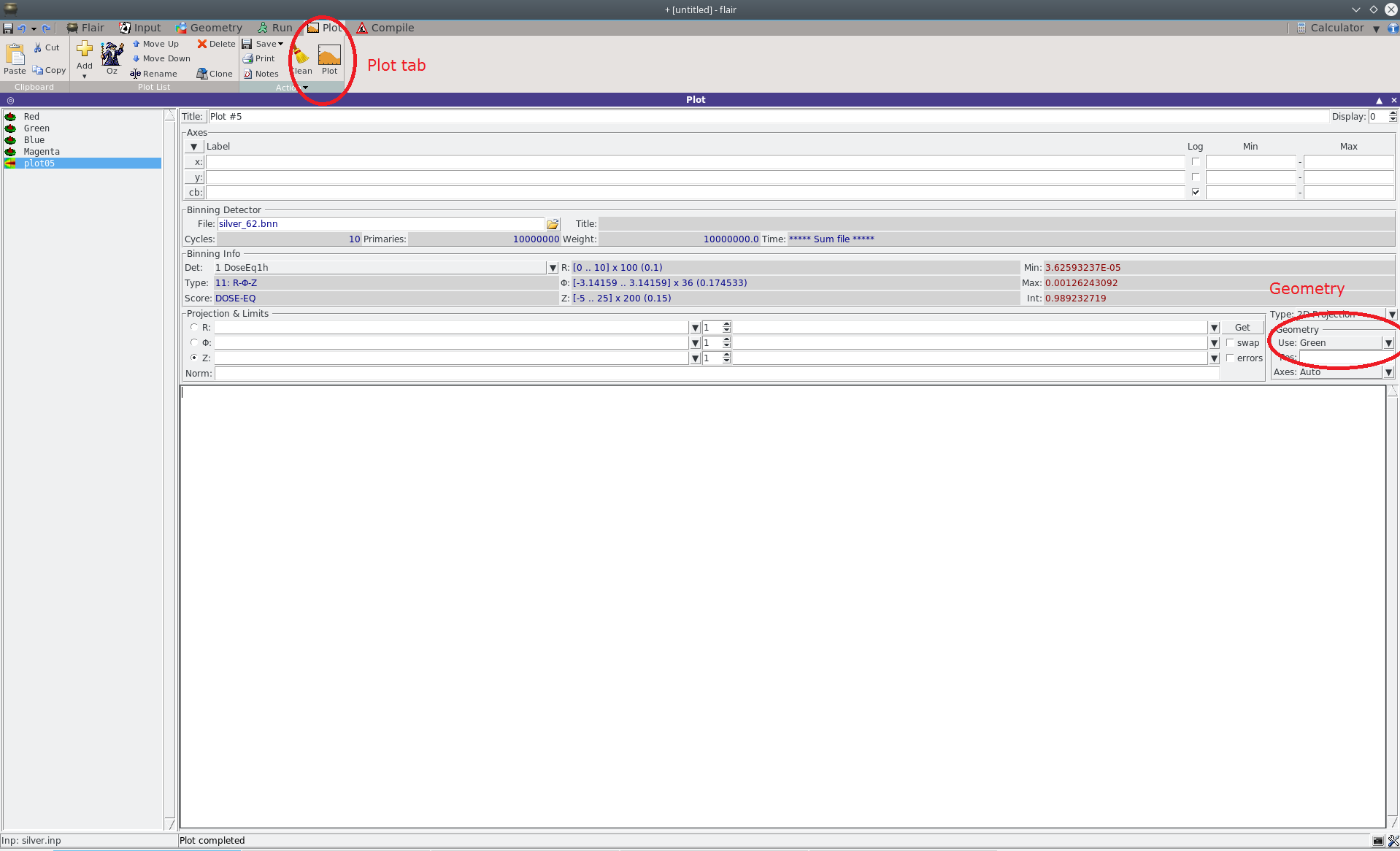

If you plot your results from the “plot tab” of flair, on the right side of the window, you can select the geometry you want to superimpose (cf. screenshot1)

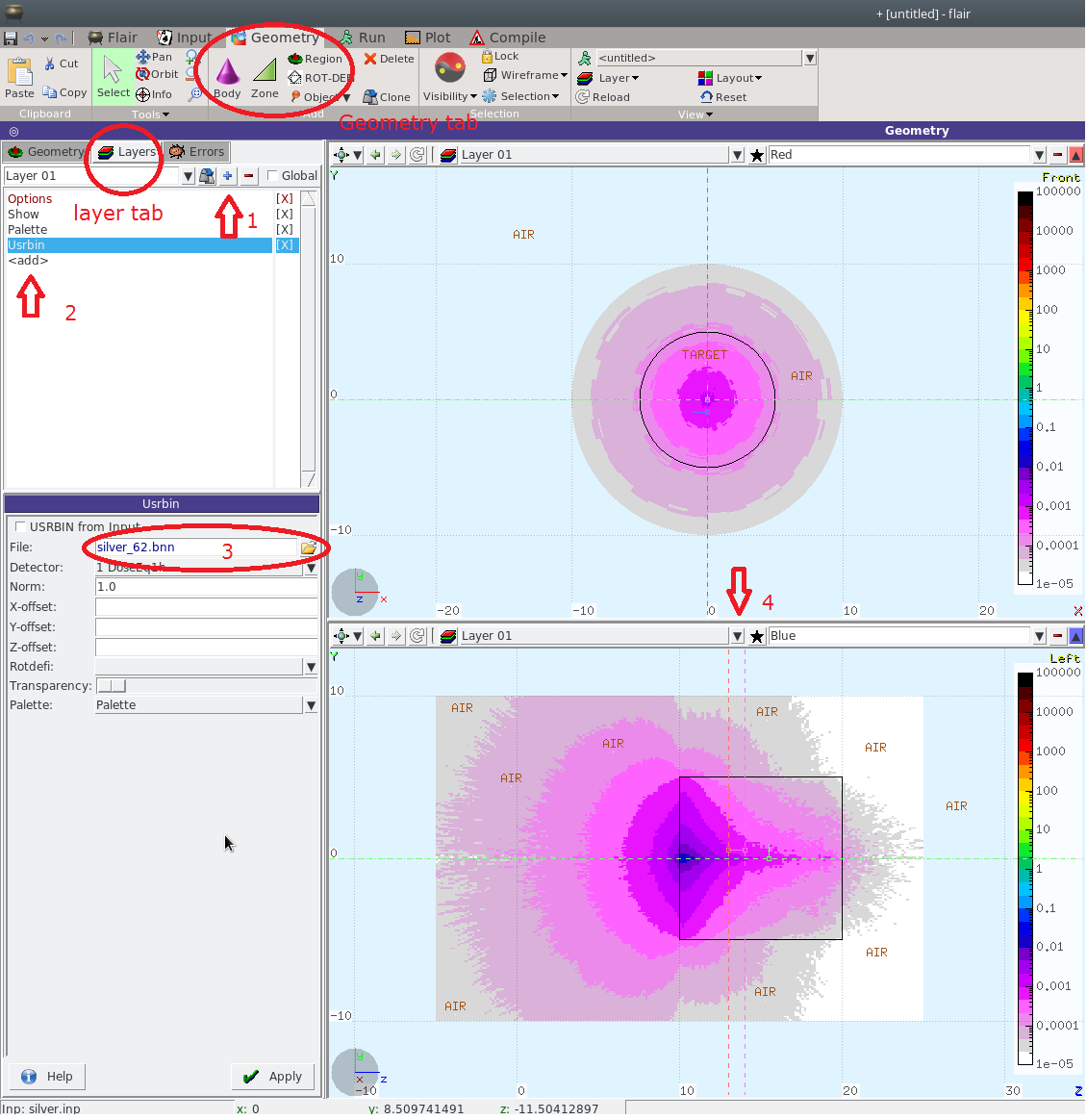

If you plot your results from the "geometry tab", you have to go in the "layers" tab from the geometry window.
1. You can clic on the "+" button to add a layer and
2. Then clic just below the "<add>" button.
3. You have to choose "userbin" and select the file you want to plot.
4. Then, in a geometry representation, clic on the arrow and chose the layer you just created.
Please refer to the screenshot2 attached in case of necessity.
Yours,
Thomas Frosio
From: owner-fluka-discuss_at_mi.infn.it <owner-fluka-discuss_at_mi.infn.it> On Behalf Of ??
Sent: Sunday, March 24, 2019 4:08 AM
To: fluka-discuss_at_fluka.org
Subject: [fluka-discuss]: Calculation result loading geometry
Dear FLUKA Experts,
I installed fluka2011.2x-linux-gfor64bitAA.tar.gz in centos7, and the flair version is 2.3-0[R4ct6b2c], However, after the run, the loading result cannot load the geometry.
, as shown in the attached file. There were no errors during the period.
Thanks and Regards
~~~~~~~~~~~~~~~~~~~~~~~~~
Kai Tao
