Dear Fluka Experts,

I am trying to simulate proton irradiation of the pure Zn and enriched Zn-68 discs in C 18 cyclotron.
Here are some results that I received.


Pure Zinc-68 solid target bombardment

a)
[cid:image020.jpg_at_01D61D47.71784800]
b)
[cid:image021.png_at_01D61D47.71784800]

Figure 41 (a) Relation between proton beam energy and Nb degrader thickness and (b) 68Ga (67.71(9) min) yields calculated in FLUKA for range of proton beam energies and pure 68Zn target thicknesses.
[cid:image022.png_at_01D61D47.71784800]

Figure 42 67Ga (3.2612(6) d) yields calculated in FLUKA for 68Zn pure targets.
[cid:image023.png_at_01D61D47.71784800]

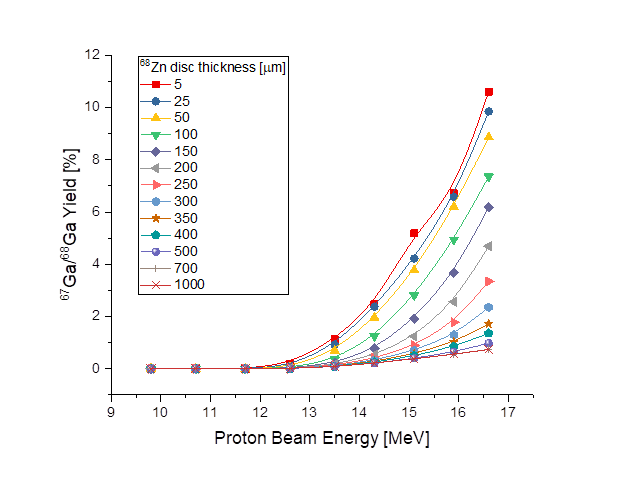

Figure 43 Ratios of the 67Ga to the 68Ga yield vs proton beam energy for 68Zn pure targets.
[cid:image024.png_at_01D61D47.71784800]
Figure 44 64Cu (12.700(2) h) yields calculated in FLUKA.

[cid:image025.png_at_01D61D47.71784800]

Figure 45 Ratios of the 64Cu yield to the 68Ga yield vs proton beam energy.

Zinc-68 enriched solid target bombardment


a)
[cid:image026.jpg_at_01D61D47.71784800]
b)
[cid:image027.png_at_01D61D47.71784800]

Figure 50 (a) Relation between proton beam energy and Nb degrader thickness and (b) 68Ga (67.71(9) min) yields calculated in FLUKA for range of proton beam energies and 68Zn enriched target thicknesses.
[cid:image028.png_at_01D61D47.71784800]

Figure 51 67Ga (3.2612(6) d) yields calculated in FLUKA for 68Zn enriched target.


[cid:image029.png_at_01D61D47.71784800]
Figure 52 Ratios of the 67Ga to the 68Ga yield vs proton beam energy for 68Zn enriched targets.

[cid:image031.png_at_01D61D47.71784800]
It is very strange that for pure Zn and for Zn-68 target I received a lot of Cu-64 which is not expected with such low energies that I use.
Could you please have a look and propose a possible explanation for that?
I also attach one of my input files and results.
