RE: [fluka-discuss]: Increase in Dose Equivalence after Shielding

From: Tshepo Mahafa <Tshepo.Mahafa_at_necsa.co.za>
Date: Fri, 29 Oct 2021 11:18:23 +0000

Dear Alfredo,

I did what you had suggested by extending my USRBIN backwards, but I could still see an increase in Dose after the shielding.
Things worked out when I also increased the roof size and put a floor and the backwall.

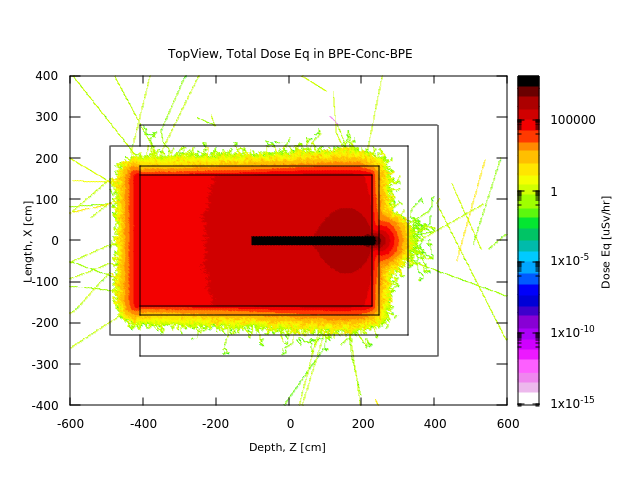

Here find attached the input and the USRBIN 2D plot.

One thing I still need to find out though is if FLUKA can simulate cold neutrons from 0 - 0.025 eV's?

Thanks for your help

Regards

Tshepo

-----Original Message-----
From: alfredo.ferrari_at_mi.infn.it [mailto:alfredo.ferrari_at_mi.infn.it]
Sent: 20 October 2021 06:52 PM
To: Tshepo Mahafa
Cc: fluka-discuss_at_fluka.org
Subject: Re: [fluka-discuss]: Increase in Dose Equivalence after Shielding

Dear Tshepo

I would bet that the increase of the dose after the shielding is due to
neutrons travelling in the air aside the shielding. If I understand
correctly, you start your beam at Z=-100 in air, with air extending more
or less ten metres on all sides. The lateral shielding instead starts at
Z=0 and th beam does not impact onto the frontal part of the shielding
until Z~200 cm. Therefore a fraction, even small, of neutrons can easily
diffuse into the air and, travelling laterally, go around the shielding.

If you look at your 2D plots you can see a hint of that looking at the
colors just outside the shielding around Z=0.

You can prove this hypothesis in two different ways:

a) extend your usrbin backwards (for Z<0) and laterally, and look athe
dose patterns, or the neutron fluence
b) move the source at Z=+1 and put blackhole everywhere for Z<0

Let me know if I am right!

Alfredo


> Dear Fluka Experts and Users,
>
>
> I performed some shielding simulations where I observed from the results
> that the dose equivalent after the shielding increases in the room as

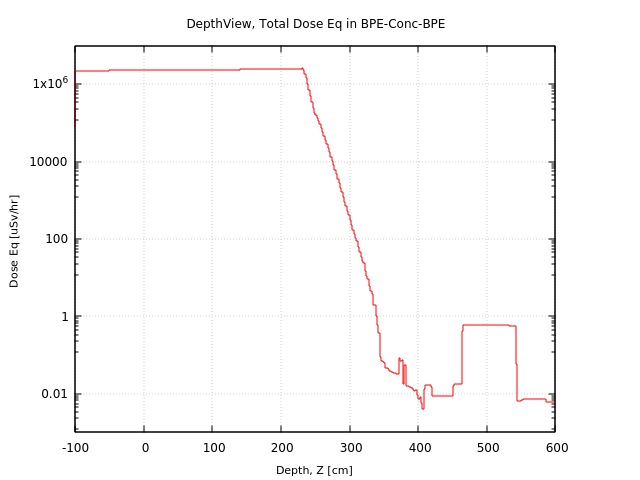

> shown in the attached Figures of 2D and 1D USRBIN plots of Dose
> Equivalence.
> In the simulation, I have three materials (Borated Polyethylene (BPE),
> Concrete (Conc), and Lead (Pb)) used to shield 100 keV neutrons at a flux
> of 3.28e8 n/cm2/sec
> In the one instance the shielding is made up of BPE-Conc-Pb and the other
> made up of BPE-Conc-BPE. The increase is seen in both configurations.
> I also ran the same simulations using 10 MeV neutron beam for the two
> configurations above and still observe the same dose increase after the
> shielding.
> What could be the cause of this increase in dose equivalence after the
> shield?
> Could it be the interaction with air particles in the room after the
> shielding that cause this increase?
>
> Can somebody please check if there is something I am missing.
>
> I’ll greatly appreciate your help.
>
>
>
>
> Warmest Regards
>
> Tshepo Mahafa
>
