Hi Alessandro,
Just as a circle can be seen as the limiting case of an inscribed regular
polygon when the number of its sides becomes infinite, a torus can be

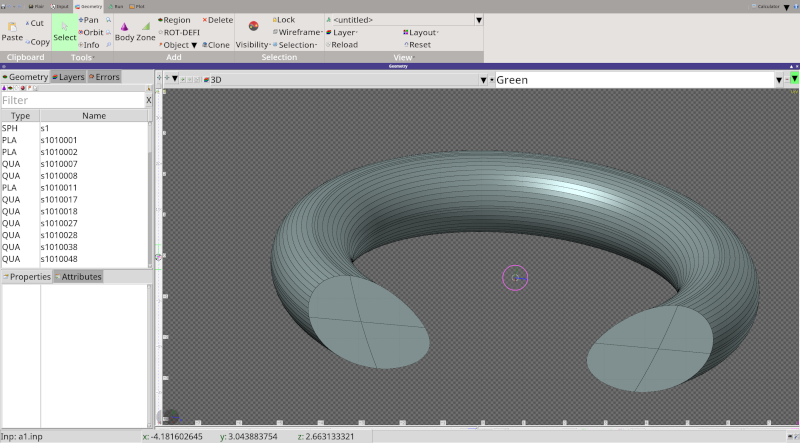

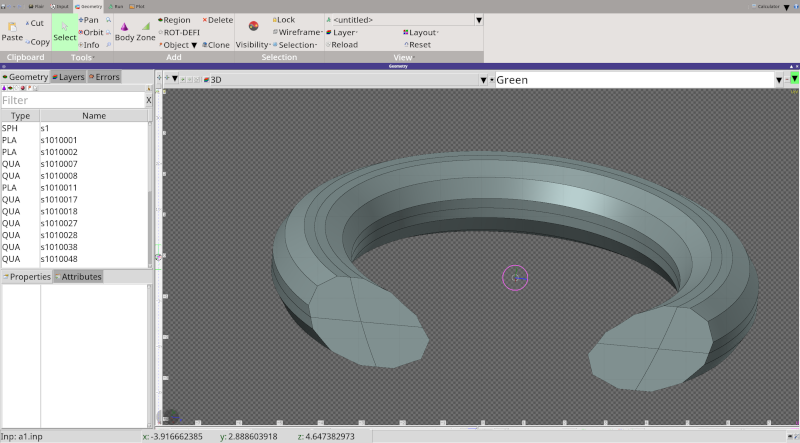

approximated by concentric cones. Attached are two FLUKA geometries
representing a torus approximated using 12 and 48 cones. The input files
were created with CombLayer (https://github.com/SAnsell/CombLayer):
singleItem --singleItem Torus -fluka -v TorusNFaces 12 -v TorusMinorRadius
1 -v TorusMajorRadius 5 torus12
The torus can be arbitrarily placed and oriented in space by setting
additional variables like Torus[XYZ]Offset and Torus[XYZ]Angle.
Best,
Konstantin
Il giorno ven 15 nov 2024 alle ore 13:22 Alessandro Calamida <
alex.calamida2_at_tiscalinet.it> ha scritto:
> Dear FLUKA experts,
>
> I could need to modelize a toros in FLUKA. From a past discussion that I
> read years ago I remember that there is not this type of body in FLUKA.
> However, it is possible to obtain it approximately as a combination of
> cylinders and truncated cones, right? Do you have any suggestions?
>
> Best regards and thank you for your time, Alessandro Calamida.
>
>
> --
> Questa email รจ stata esaminata alla ricerca di virus dal software
> antivirus Avast.
> www.avast.com
>
>
> __________________________________________________________________________
> You can manage unsubscription from this mailing list at
> https://www.fluka.org/fluka.php?id=acc_info
>
>
