Date: Mon, 18 May 2015 15:46:26 +0430
Dear FLUKA Experts
I would like to resolve a problem as a benchmark. In my problem a spectrum
of photons (synchrotron radiation) in +z direction strike an inclined Si
target and scattered SR spectrum is scored behind two SiO2 plates in x
direction.

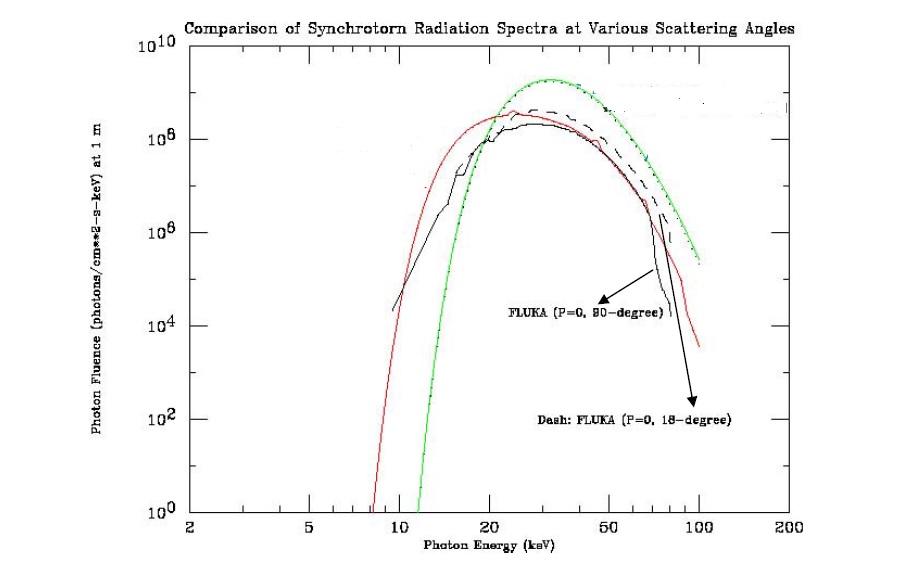

As attached figure shows the spectrum of scattered photons has been scored
in theta=90 (i.e. z=100 ,x=100) and 18 degrees(i.e. z=307,x=100).
My question is, how can I score the spectrum in exactly these two points?
If I define a very small region the time of run will not be logical and
bigger region could not be matched with those angles.
Any help would be appreciated.
Best Regards
Hamideh

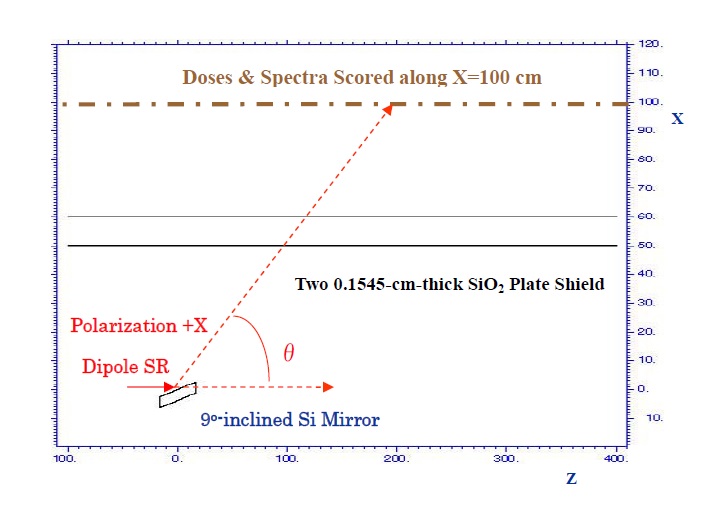

PS: the geometry of problem has been attached too.
__________________________________________________________________________
You can manage unsubscription from this mailing list at https://www.fluka.org/fluka.php?id=acc_info
(image/jpeg attachment: geometry.jpg)
(image/jpeg attachment: spectrum.jpg)
