Re: Re: [fluka-discuss]: EVENTBIN OUTPUT readout

From: YANG Tao <yangt_at_ihep.ac.cn>
Date: Tue, 1 Sep 2015 10:59:32 +0800 (GMT+08:00)

Dear Mikhail,


Thanks for your suggestions, today I run an example and it works. But I still have some difficulties to process the data. I have two questions.

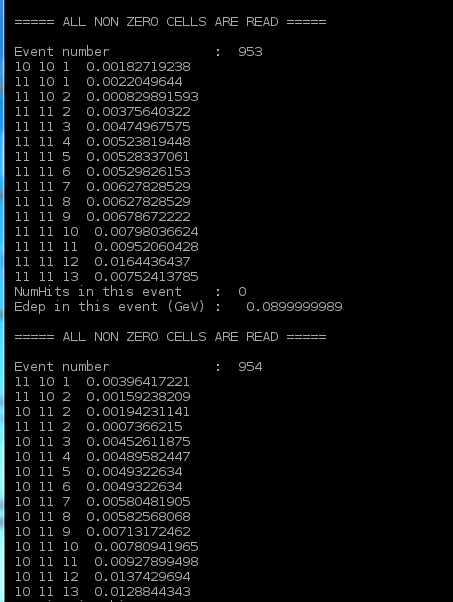

Q1:As shown in the attachment "binout.bmp", the results of the output are printed on the screen. When I am prompted to input a file name, I input the file name "**_fort.21", the results print immediately, but I am not prompted to save the output into a new file as the USBREA (readout of USRBIN) does. So what should be added to the "readbin.f" code to save the output to a new file?


Q2:As shown in the attachment "binout.bmp", the first three columns of an event out is the hit position ( Data follow in a matrix A(ix,iy,iz), format (1(5x,1p,10(1x,e11.4)))). The number may relate to the cell no. How can I know the concrete hit position?

Best Regards,


Tao Yang

-----原始邮件-----
发件人: "Mikhail Polkovnikov <Михаил Полковников>" <pmk_at_ihep.ru>
发送时间: 2015年8月31日 星期一
收件人: "YANG Tao" <yangt_at_ihep.ac.cn>, "fluka-discuss_at_fluka.org" <fluka-discuss_at_fluka.org>
抄送:
主题: Re: [fluka-discuss]: EVENTBIN OUTPUT readout


On 31.08.2015 13:29, YANG Tao wrote:

Dear Mikhail,
    Thank you for your reply. A professor told me DETECT card is not suitable for the response simulation of scintillator because it doesn't have even-by-event structure. As you mentioned, can the out "readbin" read the EVENTBIN output? It has 5 cycles in one simulation,but the data cannot be merged by FLAIR. It perhaps be the format problem, I can't even see the out files in the merge window but they exist in the folder.


Best Regards,
Tao Yang


-----原始邮件-----
发件人: "Mikhail Polkovnikov <Михаил Полковников>" <pmk_at_ihep.ru>
发送时间: 2015年8月31日 星期一
收件人: "YANG Tao" <yangt_at_ihep.ac.cn>, "fluka-discuss_at_fluka.org"<fluka-discuss_at_fluka.org>
抄送:
主题: Re: [fluka-discuss]: EVENTBIN OUTPUT readout


On 31.08.2015 10:11, YANG Tao wrote:

 I am an engineer in the Chinese Academy of Sciences, recently I am researching the response of plastic scintillator using FLUKA. I use EVENTBIN card to score the energy deposition by event-by-event. Now I have some difficulties in the readout of the EVENTBIN output. In the FLUKA discussion web, there is a fortran file named "readbin.f", I compile it with f77, while many errors are created (`MAIN__':BINREAD.f:(.text+0xfae): undefined reference to 'arrndx_'collect2: ld returned 1 exit status). I'm not very skilled in Fortran programming, and I don't know if there is a direct way to read the EVENTBIN out in the latest version of FLUKA. So could anyone send me a pre-compiled fortran routine to read the output?
Tao Yang

yangt_at_ihep.ac.cn


Dear Tao Yang,

You can compile it using command like "$(FLUPRO)/flutil/lfluka readbin.f -o readbin", or using Makefile. Why not use something easier like DETECT for energy deposition and USERDUMP for something more particular?


Best regards,
Mikhail





Dear Tao Yang,

Forget about my previous post!
1. Compile your original file as "$(FLUPRO)/flutil/lfluka readbin.f -o readbin"
2. Run it and input an any name of your unformatted file.

At least you will have some sort of output.


Best regards,
Mikhail

--
杨涛
中科院高能所东莞分部(东莞中子科学中心)加速器技术部
地址:东莞市大朗镇中子源路1号中国散裂中子源A2栋606室
E-mail:yangt_at_ihep.ac.cn
电话:0769-38944239
邮编:523803
