Dear all,

I want to calculate the bragger peak of carbon ion transport in water.

I know the bragger peak is 31.3cm in water with 430MeV/u carbon ion.
but when i caculate with Fluka , the result are shown below.
The result seems wrong and I don't know what's wrong with my caculation.

Here is my calculation condition in detail:
The energy of carbon ion equals to 0.43*12 GeV=5.16GeV.
I have linked ldpmqmd and recompile the fluka execuation.

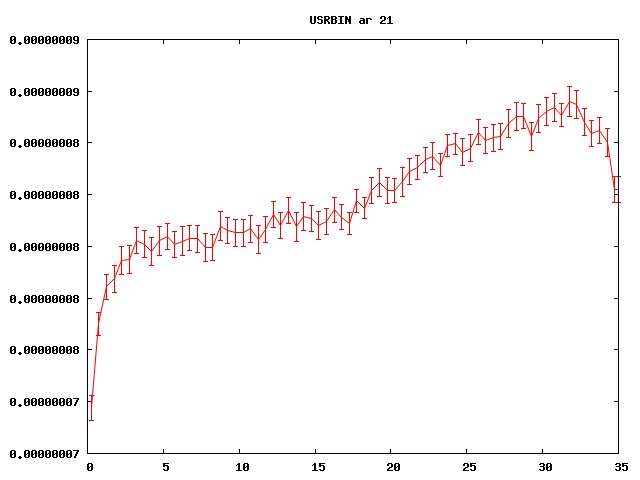

Here is the bragger curve when i ran 10cycles with 1e3 primary histories:


I have attatched my input in the attatchement.
Any help will be appreciate and thanks in advance.

Zhefu





__________________________________________________________________________
You can manage unsubscription from this mailing list at https://www.fluka.org/fluka.php?id=acc_info

(image/jpeg attachment: ar_21_plot.jpg)
