Date: Thu, 24 Aug 2017 17:02:17 +0100
Dears Fluka's Expert,
I 've a question for You.
I'm simulating the decay of a point like source of Cs-137 with the
geometric configuration that you can find in attach.
I'm doing two type of simulations: the first one putting the point like
source into a PMMA disc and the second one removing the disc.
I'm having some problems with interpreting what i get by the usrbin card:
in the event the disc is not present there is a rise in the loss of energy.
I put in attach the screens of the results, on the left there is the case
in which the disc is present and on the right the one in which is not
present.
I tried to do another simulation in which I put only the source in the
space, obtaining the same result; You can find these others results in
attach (the files in which is present "other simulation" in the name).
Thanking you for your attention I'll wait for your opinions.
Francesca
__________________________________________________________________________
You can manage unsubscription from this mailing list at https://www.fluka.org/fluka.php?id=acc_info

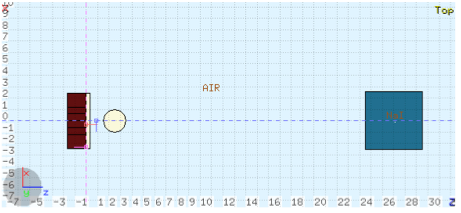

(image/png attachment: Geometry.png)

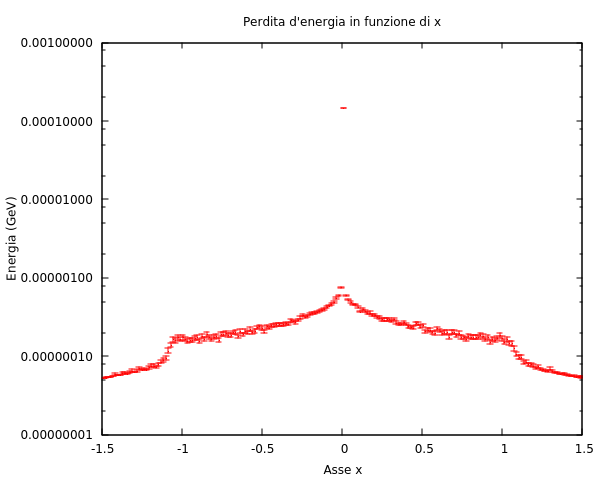

(image/png attachment: Loss_of_energy_along_x_axis_other_simulation.png)
(image/png attachment: Loss_of_energy_along_y_axis_other_simulation.png)

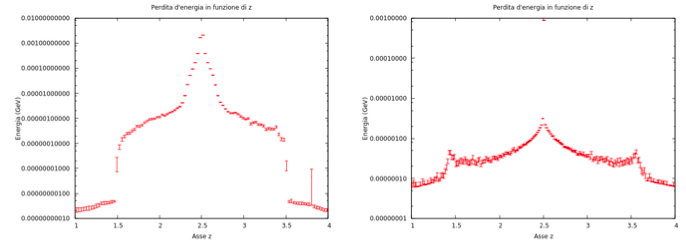

(image/png attachment: Loss_of_energy_along_z_axis.png)

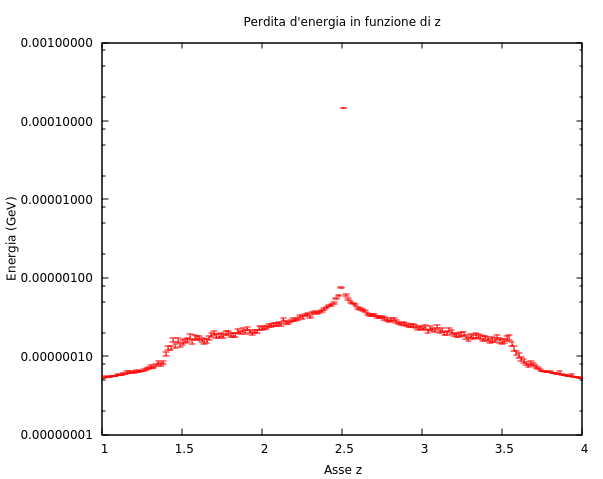

(image/png attachment: Loss_of_energy_along_z_axis_other_simulation.png)

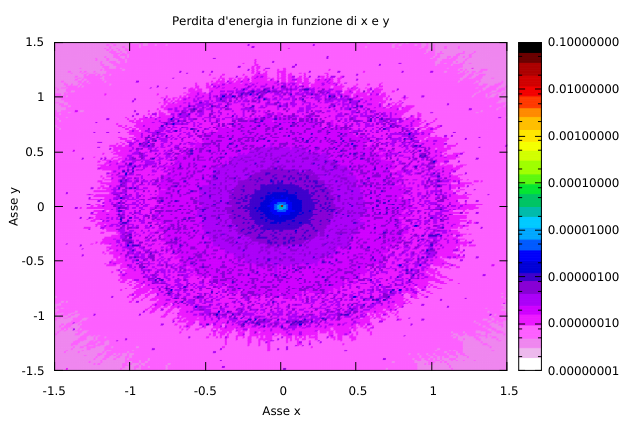

(image/png attachment: Loss_of_energy_in_x-y_plane_other_simulation.png)

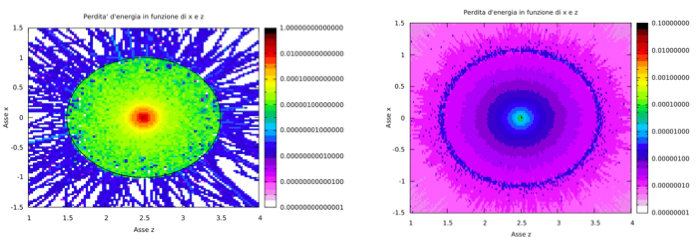

(image/png attachment: Loss_of_energy_in_x-z_plane_.png)

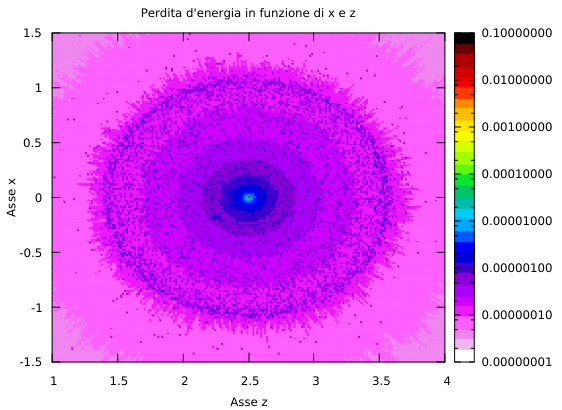

(image/png attachment: Loss_of_energy_in_x-z_plane_other_simulation.png)

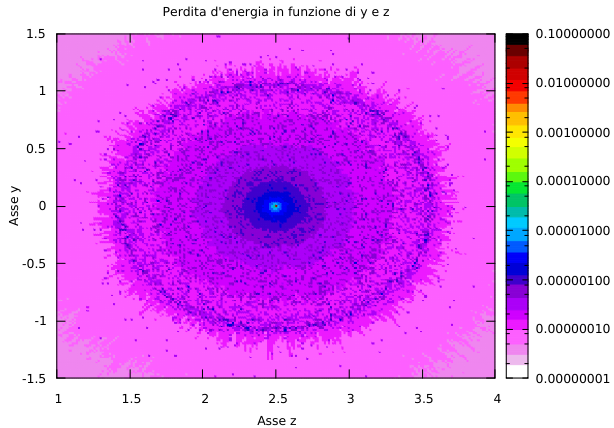

(image/png attachment: Loss_of_energy_in_y-z_plane_other_simulation.png)
