[fluka-discuss]: Error- DPMJ link

From: Masoomeh Yarmohammadi Satri <masoomeh.yarmohammadi.satri_at_cern.ch>
Date: Wed, 11 Oct 2017 14:28:59 +0000

Dear All,

I want to make a dpmjet link for running a 350MeV/nmu Carbon beam. I do this on a personal PC and the Fluka installed on a cluster
I will be thankful if someone let me know why I can not make a DPMJ link and receive the following error:

ON Personal Computer:

Started 2017.10.11 17:21:12
>>> Linking: /home/yarmohammadi/fluka-install5/flutil/ldpmqmd -o test -m fluka
$FLUPRO = /home/yarmohammadi/fluka-install5/
gfortran >= 4.6 is required for running FLUKA!!
Ended: 2017.10.11 17:21:12

Error linking
Error: executable is not generated


ON Cluster:

Started 2017.10.11 17:46:34
>>> Linking: /usr/local/fluka/flutil/ldpmqmd -o test -m fluka
$FLUPRO = /usr/local/fluka
 now linking
/usr/local/fluka
g77
tmpo/evdini.o
tmpo/eventd.o
tmpo/eveout.o
tmpo/eveqmd.o
tmpo/evqmdi.o
tmpo/idd2f.o
tmpo/idf2d.o
tmpo/zrdpcm.o
tmpo/zrrqcm.o
ar x /usr/local/fluka/libflukahp.a fluka.o
rm: cannot remove ‘test.map’: No such file or directory
g77 -m32 -mcpu=pentiumpro -O3 -g -fexpensive-optimizations -funroll-loops -fstrength-reduce -Wall -fno-automatic -fno-silent -ffortran-bounds-check -I/usr/local/fluka/flukapro -v -o test -Xlinker -Map -Xlinker test.map fluka.o tmpo/evdini.o tmpo/eventd.o tmpo/eveout.o tmpo/eveqmd.o tmpo/evqmdi.o tmpo/idd2f.o tmpo/idf2d.o tmpo/zrdpcm.o tmpo/zrrqcm.o -L/usr/local/fluka -L/usr/local/fluka/interface -L/usr/local/fluka/latestRQMD -ldpmjet3 -lrqmd -lflukahp
/usr/local/fluka/flutil/lfluka: line 156: g77: command not found
Ended: 2017.10.11 17:46:34

Error linking
Error: executable is not generated




For making DPMJ link in flair, I did the following steps:

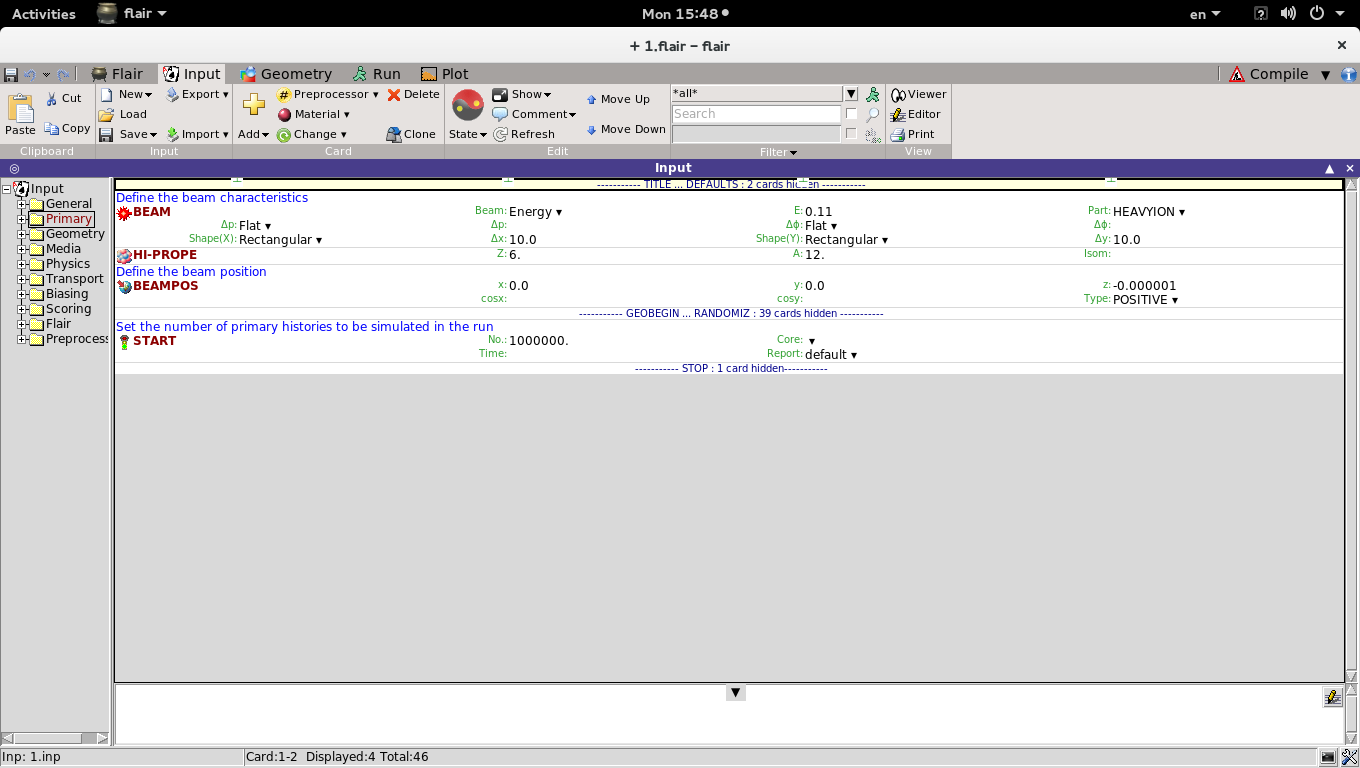

1. Press Compile button at the up right corner, the picture is attached (it is named 1).
2. Press ' ldpmqmd ' under the "Action" category.

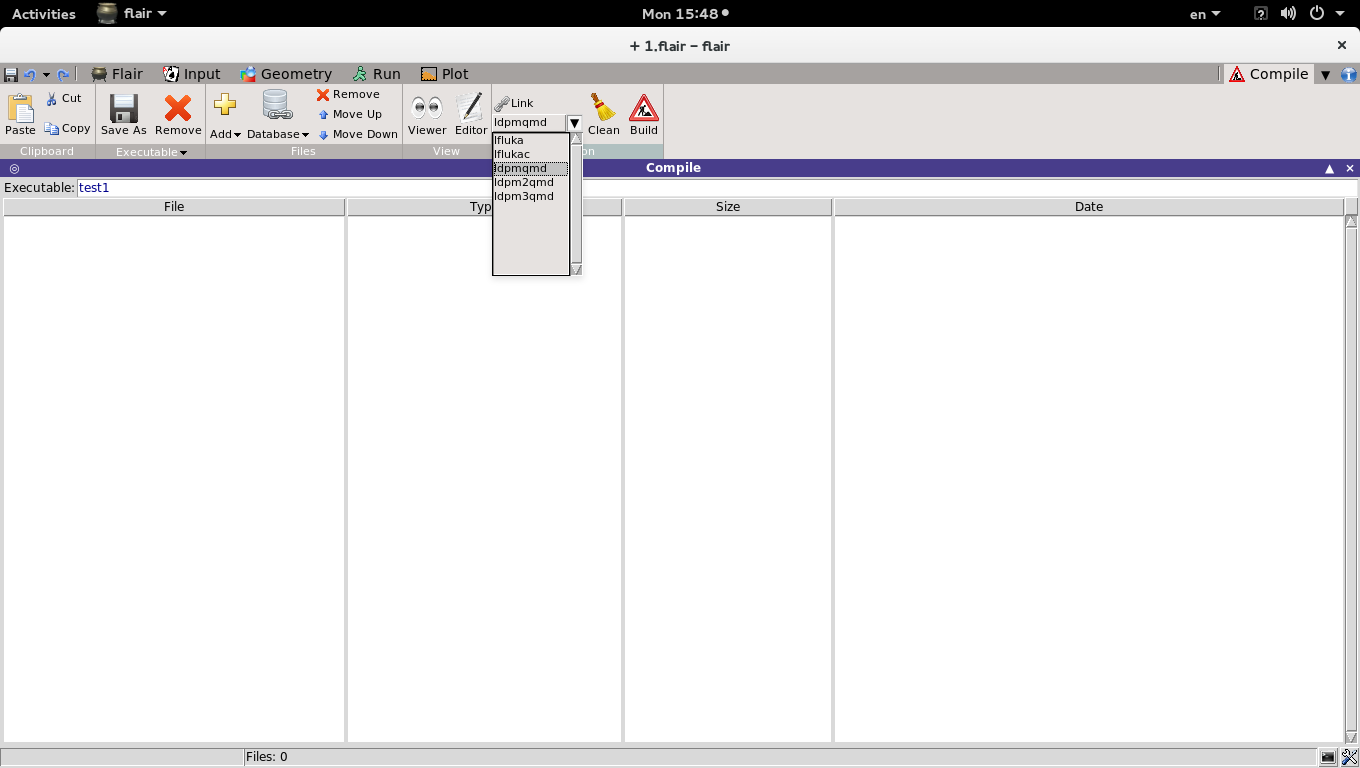

3. Press 'Build' and give a name to the file, the picture is attached (it is named 2)


Then the above error got appreared.


The inp file is attached the the email.


And for running the fluka If I need to activated the IONTRANS card.


Best regards,
Masoomeh




__________________________________________________________________________
You can manage unsubscription from this mailing list at https://www.fluka.org/fluka.php?id=acc_info

(image/png attachment: 1.png)

(image/png attachment: 2.png)
