Re: BF3 detector response function

From: John Clem (
Date: Sat Feb 02 2008 - 17:57:46 CET

  • Next message: Giuseppe Battistoni: "Re: Root+Fluka"


    Unless implementation of this effect has recently taken place, it is likely
    neccessary to extract the neutron absorption locations within the active BF3
    volume from FLUKA and use typical energy-range relationship (Bethe-Block) to
    determine the amount energy that escapes the region of interest. I think you
    have two choices: interface your energy-range code inside MGDRAW or dump the
    locations to an external file and process the data seperately from FLUKA.
    And again assuming this has not been implemented, the Q value associated
    with the ground state Li7 state fission channel is not considered and should
    also be coded (Q~2.7MeV).

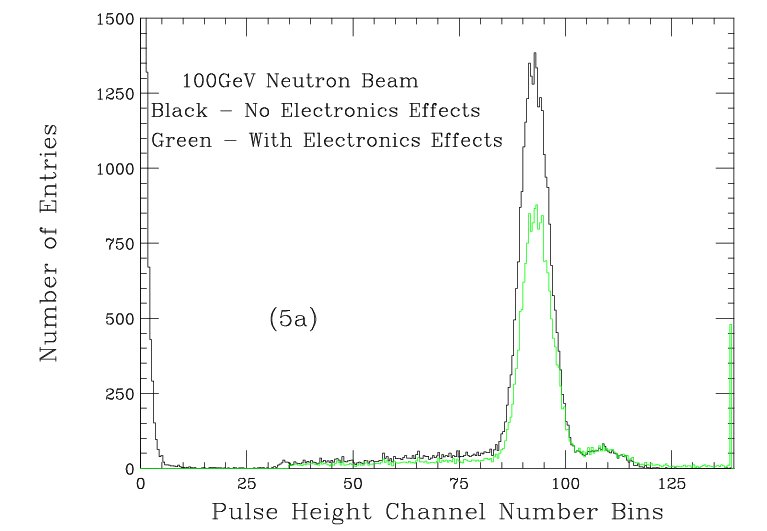

    Attached are old results using this approach... The difference in the two
    curves are caused by attempts to also include deadtime and pileup effects in
    the electronics. Anyhow, I do not presume to be an expert so perhaps others
    will have better ideas.


    > John Clem
    > Research Associate Professor
    > Bartol Research Institute
    > Department of Physics and Astronomy
    > University of Delaware
    > Newark, DE 19716 USA
    > 302-831-4354

    ----- Original Message -----
    From: "Ali Koosha" <>
    To: <>
    Sent: Saturday, February 02, 2008 12:30 AM
    Subject: BF3 detector response function

    > Dear experts
    > I am going to evaluate the response function of a BF3
    > detector. I currently use "DETECT", "EVENTDAT", and "EVENTBIN"
    > cards but can not construct a real response. I think that Fluka
    > fails to transport "alpha" and "Lithium" particles and thus I can not see
    > the
    > "wall effect". Do you think this is true?
    > --
    > Ali Koosha
