RE: [fluka-discuss]: use of usryield for energy/angle plot

From: 委v鋱k Aleksandras <aleksandras.sevcik_at_ktu.edu>
Date: Fri, 20 Mar 2020 10:57:36 +0000

Dear Mario,

Thank you very much for your answers, it helped me much. By the way, it is possible to choose WHAT(12) as 0, but such option is not described in the manual (default is 1). Only the last two moments I would like to double check with you, if I may:

--- Would it be wrong to interpret dN/dX1dX2 (where X1 is polar angle, X2 E kin) as intensity (amount) measurement, i.e. the higher is value the bigger percentage of photons are reflected at the corresponding angle?

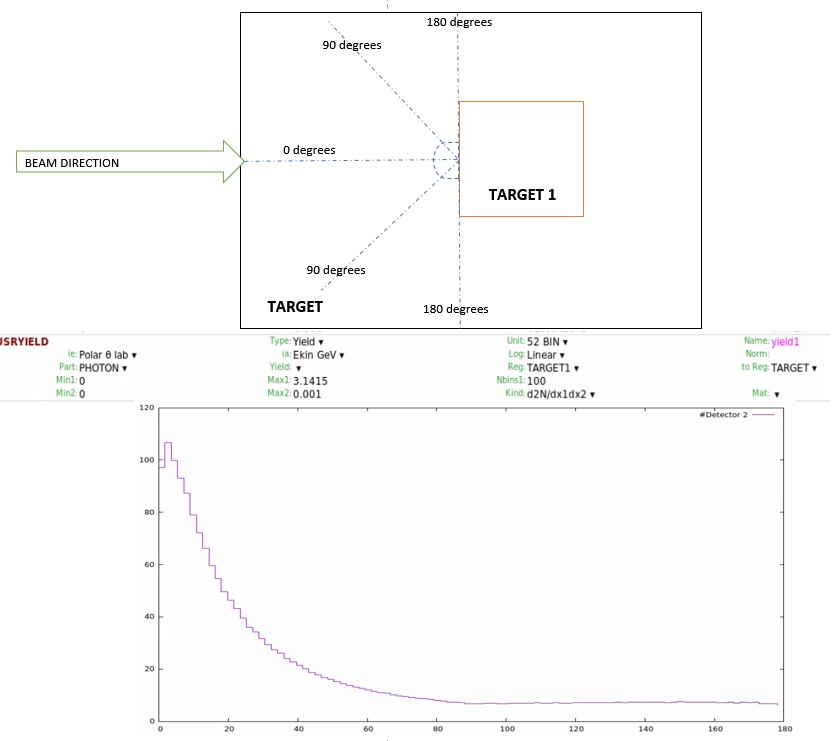

--- Please see attached picture. Do I understand the boundary/reflected angle correctly?

Once again, thank you,

Alex

From: Santana, Mario <msantana_at_slac.stanford.edu>
Sent: Friday, March 20, 2020 07:37
To: 委v鋱k Aleksandras <aleksandras.sevcik_at_ktu.edu>
Subject: Re: [fluka-discuss]: use of usryield for energy/angle plot


>>--- Which WHAT(12) should I choose to obtain the cross section in cm^2/g on Y axis ? ixa = 0 ?



Please go through the manual to select whatever is suitable for you.



>>--- So on X axis I will have Energy, ie. Scoring of the first quantity. So if I select the second quantity >>= 0 - 3.1415 does it mean that i will give me the plot : cross section vs energy in case of 180 >>degree angle is considered ? Sorry if it unclear question, I have a hard time to understand it.



it means it will give you the distribution of the first quantity for any angle between 0 and 180 (with respect to the BEAM).



>>--- just in case you can help me: I am trying to understand how I can use USRYIELD to compare the >>scattering. I have two environments , and I suspect that in one environment the scattering increases >>much. Do you have maybe a better recommendation how I could compare the scattering in the >>different geometries?



If that is your purpose, you probably want to switch variables 1 and 2, i.e. plot the angular distribution for a given energy, for each of the two setups, and compare the two.



-M



________________________________
From: 委v鋱k Aleksandras <aleksandras.sevcik_at_ktu.edu<mailto:aleksandras.sevcik_at_ktu.edu>>
Sent: Thursday, March 19, 2020 2:09 PM
To: Santana, Mario <msantana_at_slac.stanford.edu<mailto:msantana_at_slac.stanford.edu>>
Cc: fluka-discuss <fluka-discuss_at_fluka.org<mailto:fluka-discuss_at_fluka.org>>
Subject: RE: [fluka-discuss]: use of usryield for energy/angle plot


Thank you, but may I ask some other questions then,



--- Which WHAT(12) should I choose to obtain the cross section in cm^2/g on Y axis ? ixa = 0 ?



--- So on X axis I will have Energy, ie. Scoring of the first quantity. So if I select the second quantity = 0 - 3.1415 does it mean that i will give me the plot : cross section vs energy in case of 180 degree angle is considered ? Sorry if it unclear question, I have a hard time to understand it.



--- just in case you can help me: I am trying to understand how I can use USRYIELD to compare the scattering. I have two environments , and I suspect that in one environment the scattering increases much. Do you have maybe a better recommendation how I could compare the scattering in the different geometries?



Thank you very much



Alex



From: Santana, Mario <msantana_at_slac.stanford.edu<mailto:msantana_at_slac.stanford.edu>>
Sent: Thursday, March 19, 2020 22:36
To: 委v鋱k Aleksandras <aleksandras.sevcik_at_ktu.edu<mailto:aleksandras.sevcik_at_ktu.edu>>
Cc: fluka-discuss <fluka-discuss_at_fluka.org<mailto:fluka-discuss_at_fluka.org>>
Subject: Re: [fluka-discuss]: use of usryield for energy/angle plot



Hi,



>I need Y-axis to show the kinetic Energy of the scattered photons; However, the quantity I am getting >is not this most likely because of wrongly chosen WHAT(12) - what it gives me?. Which WHAT(12) >option should I use to see kinetic energy of the scattered photons?



Unfortunately, you will not be able to get a plot of energy vs. angle like you suggested in your first email. USRYIELD is generating double differential data dN/dX1dX2, sliced for a specific dX2 bin. This can be purely dN/dX1dX2, or related to cross-section, etc. as per settings of What(12).



You might be wondering how else can you achieve such plot, and I would then guide you towards the use of USERDUMP + mgdraw.f subroutine. You would then be able to obtain a scatter plot Energy vs. angle, and you would then realize that your fundamental assumption is wrong, i.e. for a given angle there is not a fix energy, but an energy distribution. You could of course for example plot <E> vs angle , or remain with the cloud plot.



>X-axis shows us the angle rage 2.5-3.1415 rad divided by 100 bins ?

No, in your case you set X axis to be the energy of photons up to 0.001 GeV, linearly in 100 bins



>TARGET > TARGET1 means the boundary where the scattered photons are crossing?

YES.



-M

________________________________

From: 委v鋱k Aleksandras <aleksandras.sevcik_at_ktu.edu<mailto:aleksandras.sevcik_at_ktu.edu>>
Sent: Thursday, March 19, 2020 3:25 AM
To: Santana, Mario <msantana_at_slac.stanford.edu<mailto:msantana_at_slac.stanford.edu>>
Cc: fluka-discuss <fluka-discuss_at_fluka.org<mailto:fluka-discuss_at_fluka.org>>
Subject: RE: [fluka-discuss]: use of usryield for energy/angle plot



Dear Mario



Thank you for point out the mistake. Could you please help in explaining the interpretation of the graph I have attached which I got with the following USRYIELD in layman terms:



*...+....1....+....2....+....3....+....4....+....5....+....6....+....7....+....

USRYIELD 1401. PHOTON -26. TARGET TARGET1 yield4

USRYIELD 0.001 0.0 100. 2. 1.5 3. &



As far as I understand:



  * I need Y-axis to show the kinetic Energy of the scattered photons; However, the quantity I am getting is not this most likely because of wrongly chosen WHAT(12) - what it gives me?. Which WHAT(12) option should I use to see kinetic energy of the scattered photons?
  * X-axis shows us the angle rage 2.5-3.1415 rad divided by 100 bins ?
  * TARGET > TARGET1 means the boundary where the scattered photons are crossing?



Thank you very much for elaborative explanation. Course slides I have could not help me much, unfortunately.



Rgds

Alex





From: Santana, Mario <msantana_at_slac.stanford.edu<mailto:msantana_at_slac.stanford.edu>>
Sent: Thursday, March 19, 2020 02:46
To: 委v鋱k Aleksandras <aleksandras.sevcik_at_ktu.edu<mailto:aleksandras.sevcik_at_ktu.edu>>
Cc: fluka-discuss <fluka-discuss_at_fluka.org<mailto:fluka-discuss_at_fluka.org>>
Subject: Re: [fluka-discuss]: use of usryield for energy/angle plot



Hi Aleksandras,



In flair empty plots usually are not plotted and you get a plot error message instead. This is what is happening in this case.

The reason is that you are requesting USRYIELD at the interphase between TARGET1 and _at_LASTREG, but _at_LASTREG=TARGET1, thus nothing can be scored.



(Also note that in your input file you have comments referring to cylindrical targets but instead you are using cubes)



-M



On Mar 17, 2020, at 9:22 AM, 委v鋱k Aleksandras <aleksandras.sevcik_at_ktu.edu<mailto:aleksandras.sevcik_at_ktu.edu>> wrote:



Dear Fluka experts,



I am trying to utilize USRYIELD to be able to create the scattered photon plot , energy vs angle as per attached example.

I created the several usryield detectors as I understood from the tutorial courses as well as from some examples, see the attached inp file.

However, I am unable to plot any of them - when trying to do so, getting plot errors and nothing more.



Could someone point out my mistake and how I could gather the required data to plot energy vs angle in this case - I would appreciate so much a detail explanation,



Alex

<example.png><scatter.inp>
