Hello
I have noticed 2 strange things (bugs)
In the first scenario a Heavy ion beam is dumped into Al target. It's
air (custom material) outside and Iron backwards (beam dump). USRBIN
DOSE calculation shows strange distribution for electrons and this
affects overall dose. By strange distribution I mean a huge peak on
some distance, which is represented by circles on the cut.
plots attached:

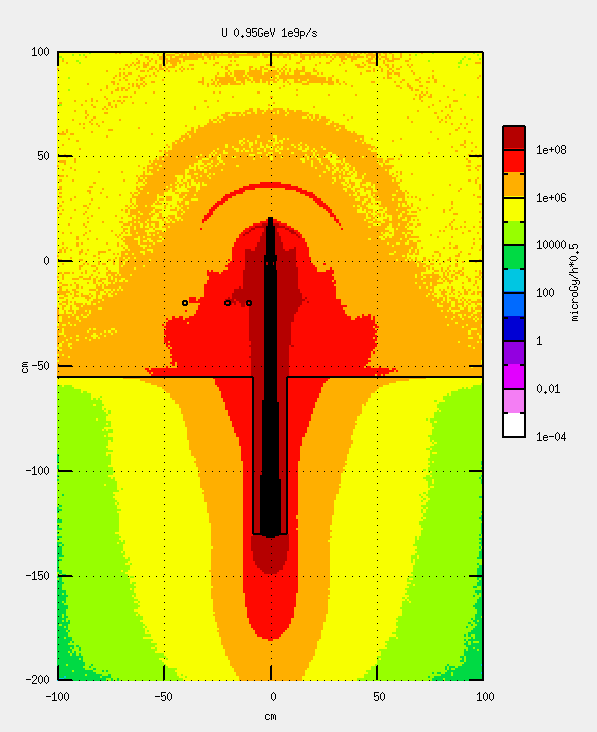

HHDDOSEall1.png? USBIN DOSE for all particles

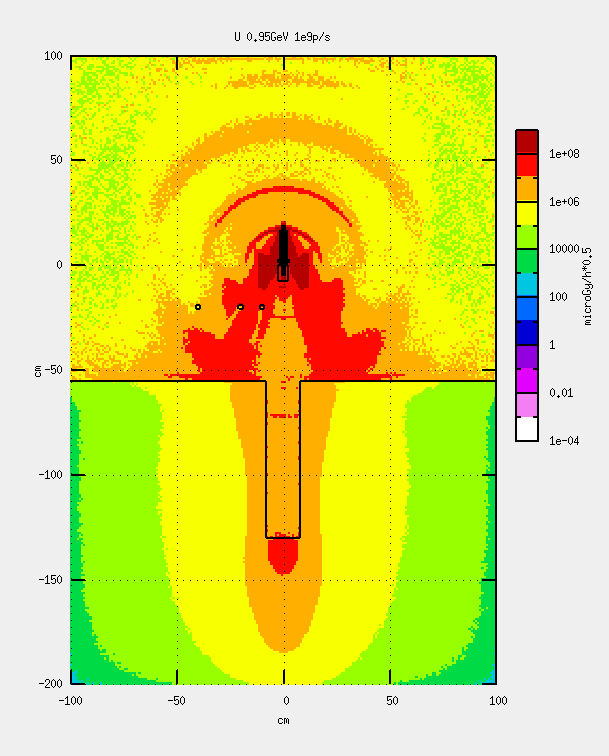

HHDDOSEelectron1.png? USBIN DOSE for electrons only

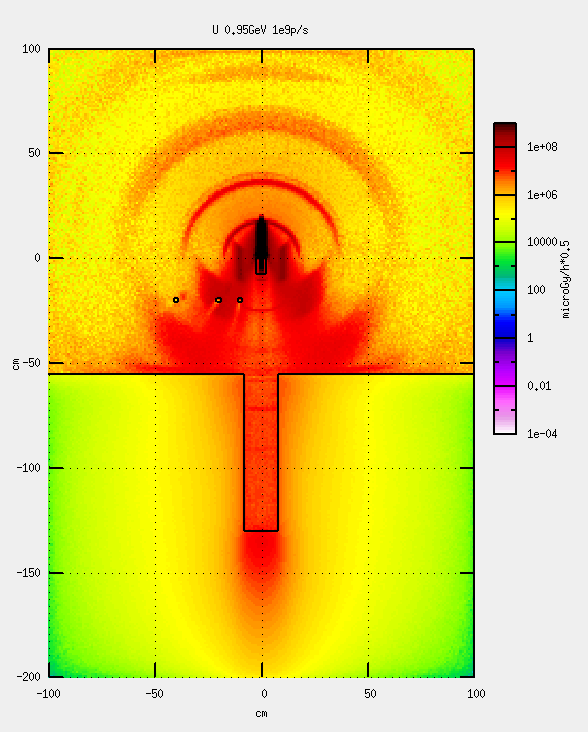

HHDDOSEelectron10.png? the same with smooth scale
HHDdose.inp? input file

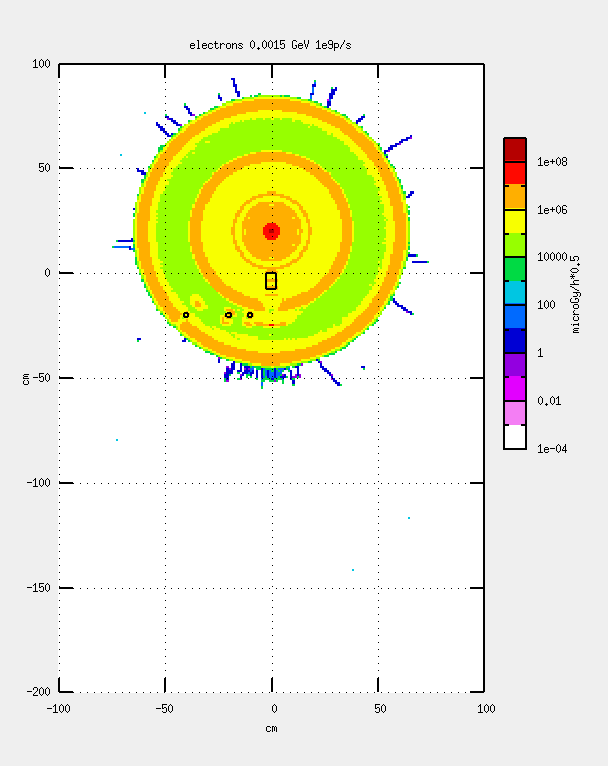

The second simulation is an isotropic electron source of 0.0015GeV -
the same kind of absolutely strange USRBIN DOSE distribution. It's
only air everywhere, but divided into subregions. That's where I also
see the second bug - ununiformity because of these virtual regions of
the same material.
Best regards,
Anton Belousov
