Date: Thu, 1 May 2014 12:01:36 +0000

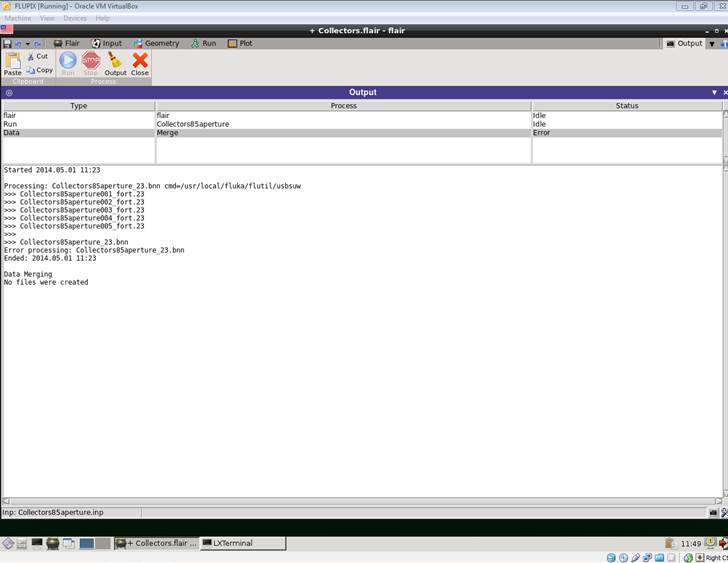

Thanks Ana – yes I saw the new version on FLUPIX was available this morning, I downloaded this and re-ran my simulations, but unfortunately I encountered exactly the same problem when attempting to merge the USRBIN files… (see screenshot below)
So I’m still not sure if there is a different problem?
Or am I doing something wrong?
Hayley
[cid:image002.jpg_at_01CF653D.7C0E0DE0]
From: Ferreira De Almeida Lourenco, Ana [mailto:am.lourenco_at_ucl.ac.uk]
Sent: 01 May 2014 11:57
To: Smith, Hayley (STFC,RAL,ISIS); fluka-discuss_at_fluka.org
Subject: RE: Re: [fluka-discuss]: Problems when I tried to merge the USRBIN datasin flair
Dear Hayley and everyone
I used to get the same error - I think it was due to a last version of FLUKA on FLUPIX. I think FLUPIX was updated yesterday, so if you install it you should be able to run it without problems.
Hope that helps!
Best wishes,
Ana
________________________________
De: owner-fluka-discuss_at_mi.infn.it<mailto:owner-fluka-discuss_at_mi.infn.it> <owner-fluka-discuss_at_mi.infn.it<mailto:owner-fluka-discuss_at_mi.infn.it>> em nome de hayley.smith_at_stfc.ac.uk<mailto:hayley.smith_at_stfc.ac.uk> <hayley.smith_at_stfc.ac.uk<mailto:hayley.smith_at_stfc.ac.uk>>
Enviado: quarta-feira, 30 de Abril de 2014 15:05
Para: fluka-discuss_at_fluka.org<mailto:fluka-discuss_at_fluka.org>
Assunto: FW: Re: [fluka-discuss]: Problems when I tried to merge the USRBIN datasin flair
Dear All

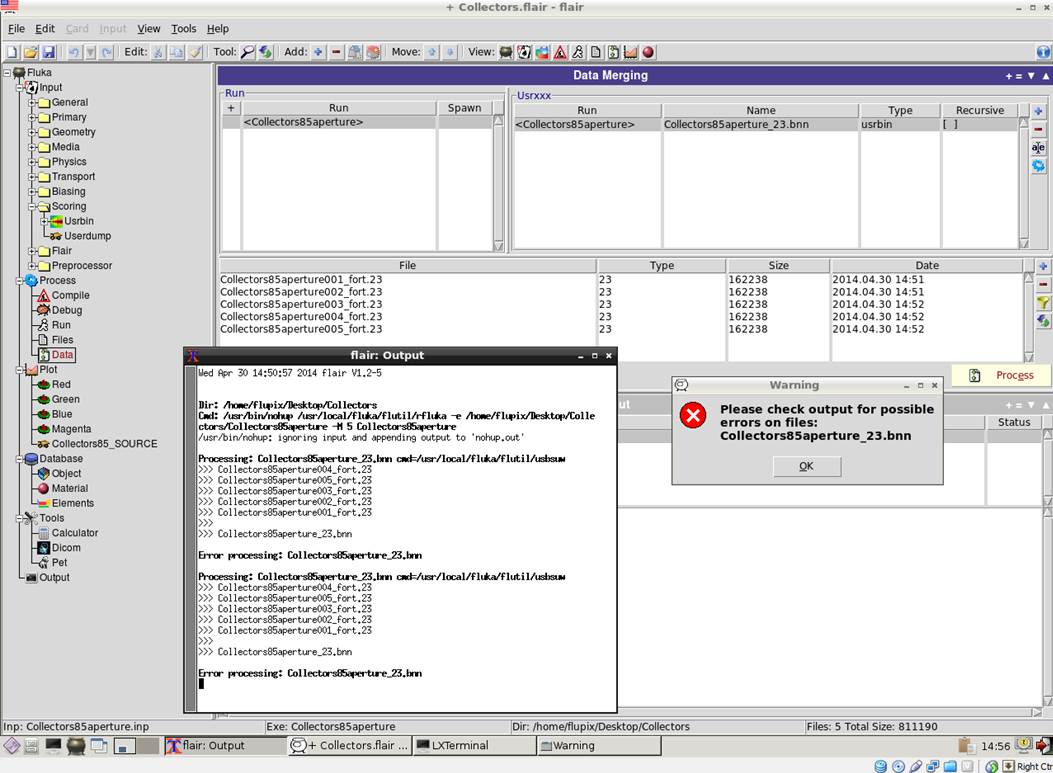

I have also encountered the problem regarding merging USRBIN data sets (mentioned in the thread below), see screenshot.
I have tried the solution suggested, but I am still unable to successfully merge USRBIN data.
Is anyone able to offer any other suggestions, or possible reasons for the problems?
I am using the current version of FLUPIX flupix-2011:2b-5_flair-1.2-5.iso and didn’t used to have any problems in the previous version.
My input file is attached, in case that is also relevant. I have also tried testing with a the tutorial files and have re-read my course notes, but I am now at a loss as to what is wrong…
Many thanks for any further suggestions you are able to give,
Hayley
Hayley Smith
Accelerator Physicist
ISIS Facility
Rutherford Appleton Laboratory
Harwell Oxford
OX11 0QX
01235 445524
hayley.smith_at_stfc.ac.uk<mailto:hayley.smith_at_stfc.ac.uk>
[cid:image003.jpg_at_01CF653C.1A012700]
From: nikhil shetty [mailto:nikhil.nitk_at_gmail.com]
Sent: 29 March 2014 14:18
To: 徐妙华
Cc: fluka-discuss
Subject: Re: Re: [fluka-discuss]: Problems when I tried to merge the USRBIN datasin flair
I refer you to this thread, where a similar problem was treated: http://www.fluka.org/web_archive/earchive/new-fluka-discuss/3380.html
It seems for some reason the executable required to postprocess USRBIN files is missing. I suggest you to try the following steps:
1) cd /usr/local/fluka/flutil
2) $FLUPRO/flutil/lfluka -o usbsuw usbsuw.f
3) $FLUPRO/flutil/lfluka -o usbrea usbrea.f
Now try merging the USRBIN files again. Hope it works.
Cheers,
-Nikhil
On Sat, Mar 29, 2014 at 2:01 AM, 徐妙华 <mhxu_at_cumtb.edu.cn<mailto:mhxu_at_cumtb.edu.cn>> wrote:
Nikhil,

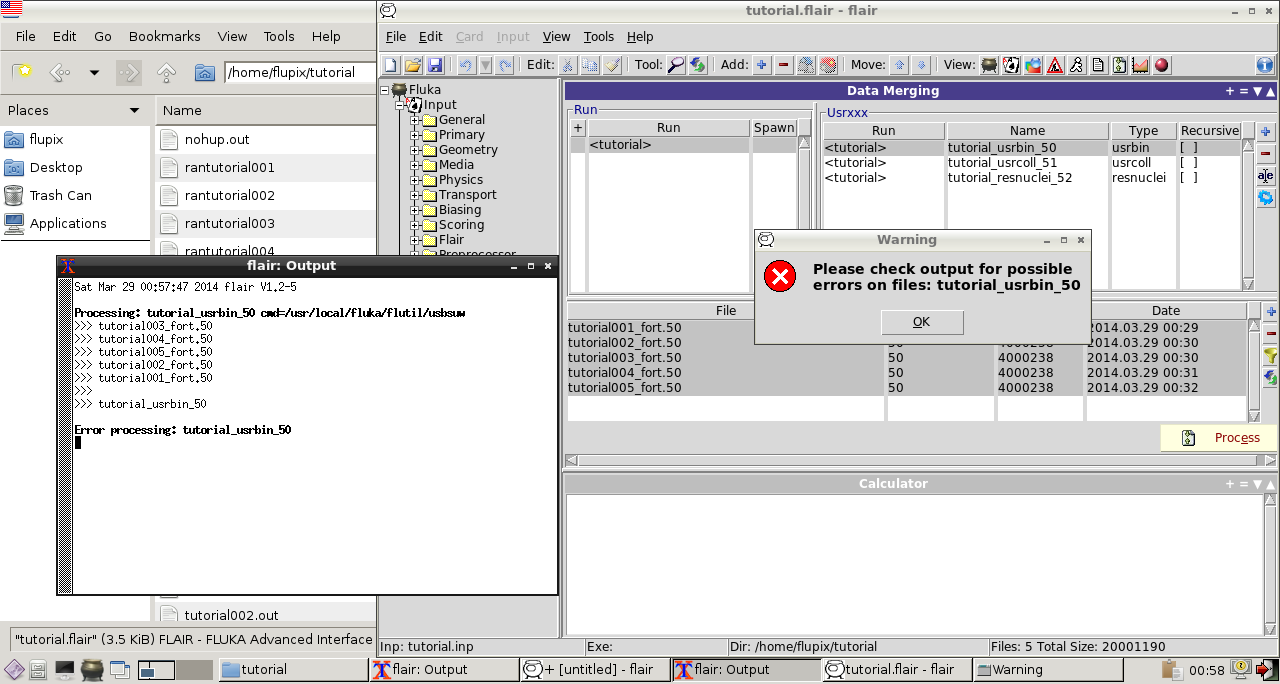

When I merged the USRBIN data in "tutorial.flair", the output window said "Error processing: tutorial_usrbin_50".
[cid:image004.png_at_01CF653C.1A012700]
As in the case of "example.inp", it said almost the same: "Error procssing: example_50.bnn".
Thanks!
Miaohua
---------
----邮件原文----
发件人：nikhil shetty <nikhil.nitk_at_gmail.com<mailto:nikhil.nitk_at_gmail.com>>
收件人：徐妙华<mhxu_at_cumtb.edu.cn<mailto:mhxu_at_cumtb.edu.cn>>
抄 送: fluka-discuss <fluka-discuss_at_fluka.org<mailto:fluka-discuss_at_fluka.org>>
发送时间：2014-03-29 01:46:03
主题：Re: [fluka-discuss]: Problems when I tried to merge the USRBIN datasin flair
Miaohua,
Did you actually check for the error message in the output? What does it say?
Cheers,
Nikhil
On Friday, March 28, 2014, 徐妙华 <mhxu_at_cumtb.edu.cn<mailto:mhxu_at_cumtb.edu.cn>> wrote:
Dear FLAIR experts,
I ran the "tutorial.flair" with the lastest flair version in the virtual box. There were no problems in the run simulation.And also when I merged the data of "tutorial_usrcoll_51" and the "tutorial_resnuclei",everything was good. I can get the merged data file and succeed in plotting. However, when I tried to merge the data of "USRBIN", I got the message "Please check output for possible errors on file: tutorial_usrbin_50", and then "No files were created". I tried the other input files, such as the "example.inp". The merging of "USRBDX" and the "USRTRACK" data is just fine, while there is always problems when I merged the "USRBIN" data.
This error seemed quite strange for me. Can anyone tell me the reason and how to solve this problem?
Thank you very much!
Miaohua
---------
