[fluka-discuss]: an odd simulation result by USRBDX and

From: Ñ <b-yang12_at_mails.tsinghua.edu.cn>
Date: Thu, 17 Sep 2015 20:37:01 +0800 (GMT+08:00)

Hi, every fluka user:

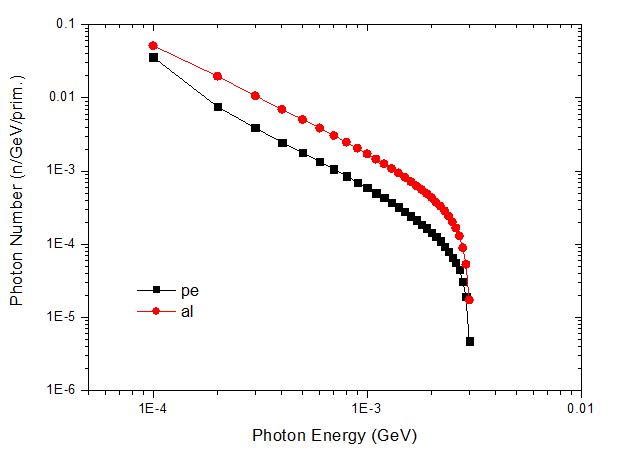

  when I simulate the process of electron with monoenergy of 3MeV hitting Al and PE target with same thickness of 1mm and score the forward photon dose and photon spectrum by USRBDX and AUXSCORE. I found that the dose (1.683E-4 psv/prim) generated by PE target is larger than that (1.179E-4 psv/prim) genrated by Al Target, but from the photon spectrum, the photon number generated by Al is more than that generated by PE in the all energy range as attached. I check my inputfile and no error was found ,I hope someone can help me to explain these results which are obviously contradictory£¬Thank you so much, the input file and orginal results was attached.

Bo yang







__________________________________________________________________________
You can manage unsubscription from this mailing list at https://www.fluka.org/fluka.php?id=acc_info

(image/jpeg attachment: al-pe.JPG)
