Re: [fluka-discuss]: Flair plot

Hello Vladimir,
     I have looked at your files and it seems to me that there are
errors in your
geometry (I do not have the voxels file and cannot further investigate
nor reproduce
your error). Please check at the end of the flairbvvDJY001.out file:

  Abort called from GEOFAR reason  TOO MANY ERRORS IN GEOMETRY: STOP Run
stopped!
  STOP  TOO MANY ERRORS IN GEOMETRY: STOP

Best regards,
Andrea


Il 16/09/2017 19:57, Vladimir Fedorov ha scritto:

 --
 Best regards
 Vladimir Fedorov
 Dear Andrea!
 I cleaned all fields at Flair Plot, setup all auto, and got as a
 result the same picture without contours and some Flair's files (look
 at temp.zip).
 --
 Best regards
 Vladimir Fedorov
 16.09.2017, 17:25, "Andrea Fontana" <andrea.fontana@pv.infn.it>:


 Hi Vladimir,
    I see that you use the geometry Red (front view) at position 21.
 You can try "Auto" and the geometry should be visible also with the log
 scale.

 Andrea

 Il 16/09/2017 15:47, Федоров Владимир ha scritto:

      Dear Andrea!
      Yes, I find Aspect under Title. Thank you.

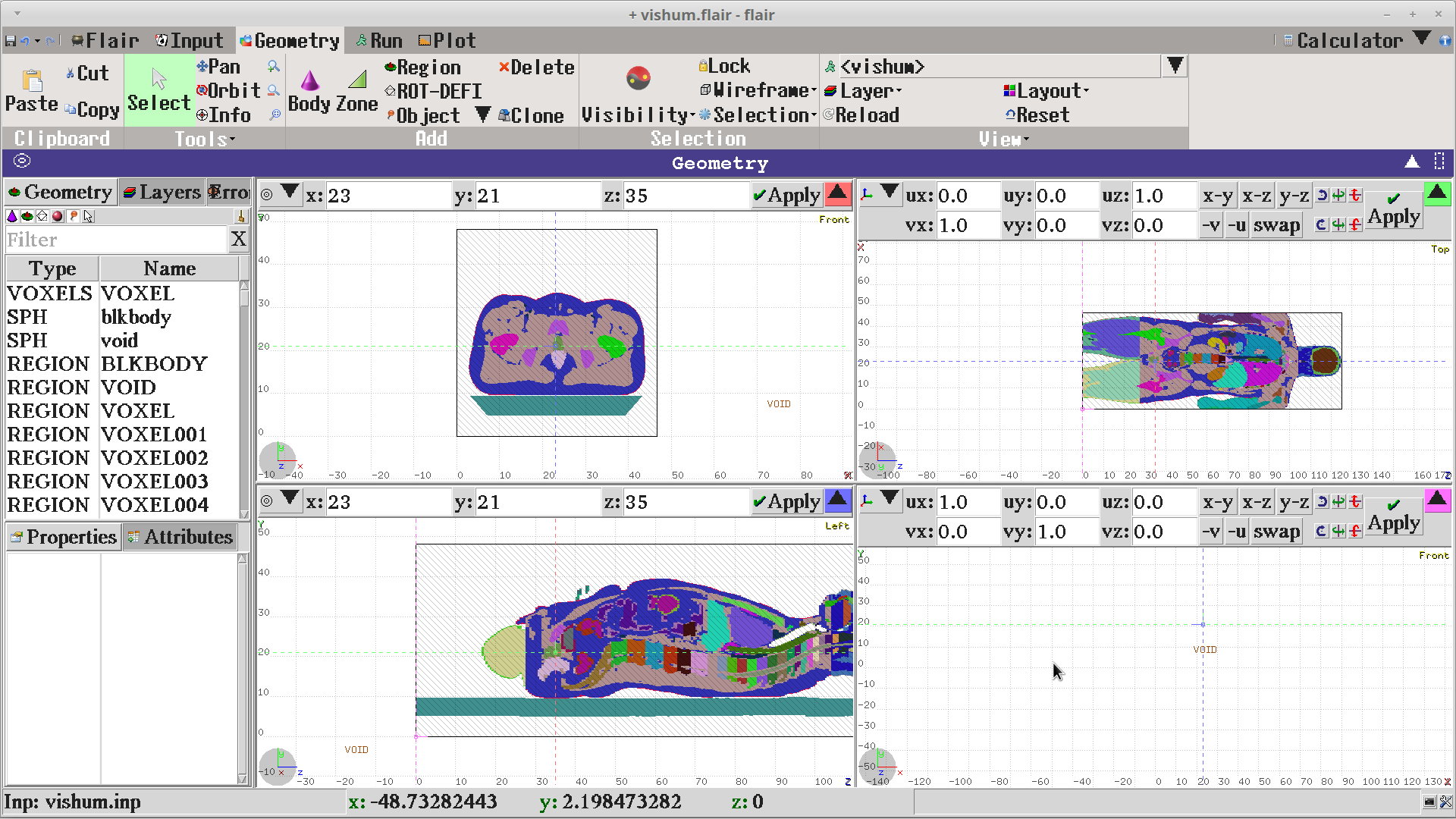

      I can show Flair screen (see attachment))
      16.09.2017, 16:15, "Andrea Fontana" <andrea.fontana_at_pv.infn.it
     <mailto:andrea.fontana@pv.infn.it>>:

          Dear Vladimir,

          1. Have you tried to set the Geometry Use options (bottom
         right in the
          plot panel) to "Auto"
              or to the name of your project?

          2. If you click on "Title" in the plot panel, extra options
         will be
          available: here you can
              force an aspect ratio 1 or select "Auto" to let Flair do
         it for you.

          Cheers,
          Andrea

          Il 16/09/2017 10:45, Vladimir Fedorov ha scritto:

               Dear Flair experts!
               I have two questions of drawing in Flair.
               1. Why at setting of the linear scale of sizes I can
         receive the
               picture with contours of bodies (pict1.png). But if to
         establish
              a log
               chart, then contours disappear (pict2.png). How to keep
         a contours?
               2. When drawing with identical sizes on axes (square)
         the picture
               looks oblate down. How to correct it?
               I thank for the help.
               --
               Best regards
               Vladimir Fedorov
               --
               Best regards
               V.Fedorov

          --
          ========================================================================
          Dr. Andrea Fontana tel: +39 0382 987991
          Istituto Nazionale fax: +39 0382 423241
          di Fisica Nucleare
          Sezione di Pavia e-mail: andrea.fontana@pv.infn.it
         <mailto:andrea.fontana@pv.infn.it>
          <mailto:andrea.fontana@pv.infn.it
         <mailto:andrea.fontana@pv.infn.it>>
          Via Bassi 6 web : www.pv.infn.it/~fontana
         <http://www.pv.infn.it/%7Efontana>
          <http://www.pv.infn.it/%7Efontana>
          27100 PAVIA, Italy
          ========================================================================

      --
      Best regards
      V.Fedorov

 --
 ========================================================================
 Dr. Andrea Fontana tel: +39 0382 987991
 Istituto Nazionale fax: +39 0382 423241
 di Fisica Nucleare
 Sezione di Pavia e-mail: andrea.fontana@pv.infn.it
 <mailto:andrea.fontana@pv.infn.it>
 Via Bassi 6 web : www.pv.infn.it/~fontana
 <http://www.pv.infn.it/%7Efontana>
 27100 PAVIA, Italy
 ========================================================================


 --
 Best regards
 V.Fedorov



--
========================================================================
Dr. Andrea Fontana tel: +39 0382 987991
Istituto Nazionale fax: +39 0382 423241
di Fisica Nucleare
Sezione di Pavia e-mail: andrea.fontana@pv.infn.it
Via Bassi 6 web : www.pv.infn.it/~fontana
27100 PAVIA, Italy
========================================================================
