Date: Thu, 12 Sep 2019 00:49:36 +0100
Thanks for your response and for the link. I used the input file and
defined the detector (attached) and tried to score the neutron fluence.

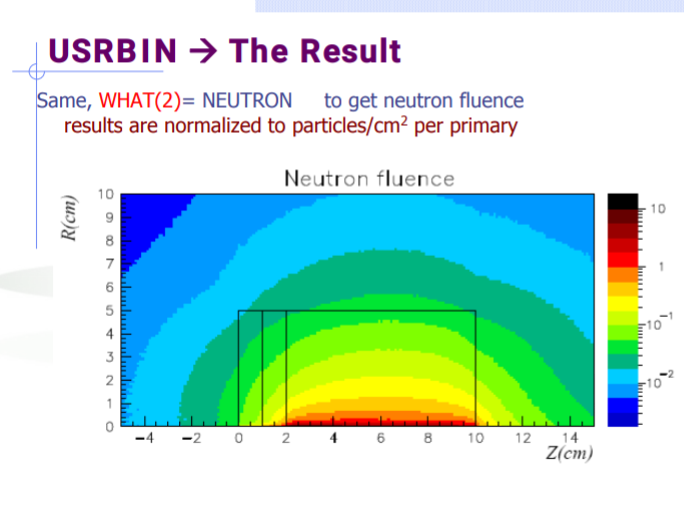

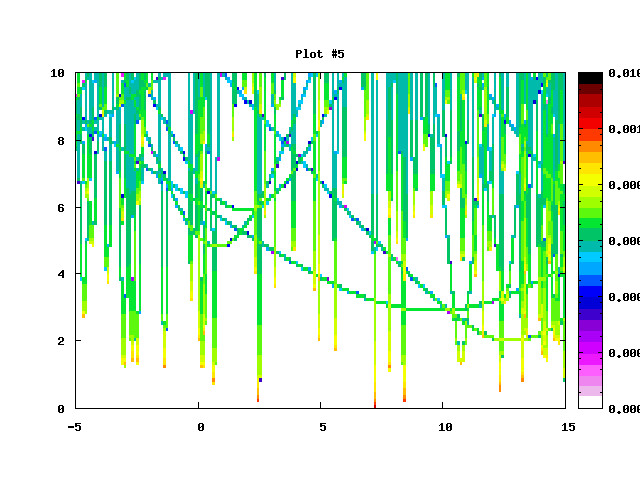

The result from the manual shows Attachment 1. While from my plot, I got
attachment 2. Where may the problem lie? Is it with my detectors or the
plotting set up. Thanks and regards
On Wed, Sep 11, 2019, 9:36 PM Celestine Onjewu Oche <
oche.pg821497_at_st.futminna.edu.ng> wrote:
> Thanks stefan.
>
> On Wed, Sep 11, 2019, 9:20 PM Stefan Roesler <Stefan.Roesler_at_cern.ch>
> wrote:
>
>> Hello
>>
>>
>>
>> This is one of the exercises of the FLUKA Beginner Course. You can find
>> the solution on the web, for example
>>
>>
>>
>>
>> https://indico.cern.ch/event/694979/contributions/2927101/attachments/1657764/2654526/ex_Geo1_final.inp
>>
>>
>>
>> Cheers
>>
>> Stefan
>>
>>
>>
>> *From:* owner-fluka-discuss_at_mi.infn.it <owner-fluka-discuss_at_mi.infn.it> *On
>> Behalf Of *Celestine Onjewu Oche
>> *Sent:* 10 September 2019 17:48
>> *To:* Fluka Discuss <fluka-discuss_at_fluka.org>
>> *Subject:* [fluka-discuss]: Three layer structure
>>
>>
>>
>> Hello Professionals,
>>
>> I want to define this geometry as seen in the problem (attached picture).
>> They used RCC as the whole shape and air outside. For the three layers,
>> which are water, aluminum and lead, I am bugged by the definition used to
>> create these regions (geometry and region declaration). Pls I need help
>> with the definition and I have attached the .inp file for reference,
>> corrections and possible suggestions. Thanks
>>
>
