Date: Wed, 30 Apr 2014 22:22:30 +0200
Dear Hayley,
I can't run the inp file as I miss the source file that I use.
Can you try to merge the USRBINs manually using $FLUPRO/flutil/usbsuw from
the command line and post the output you get?
Best,
V.
On Wed, Apr 30, 2014 at 5:05 PM, <hayley.smith_at_stfc.ac.uk> wrote:
> Dear All
>
>
>
> I have also encountered the problem regarding merging USRBIN data sets

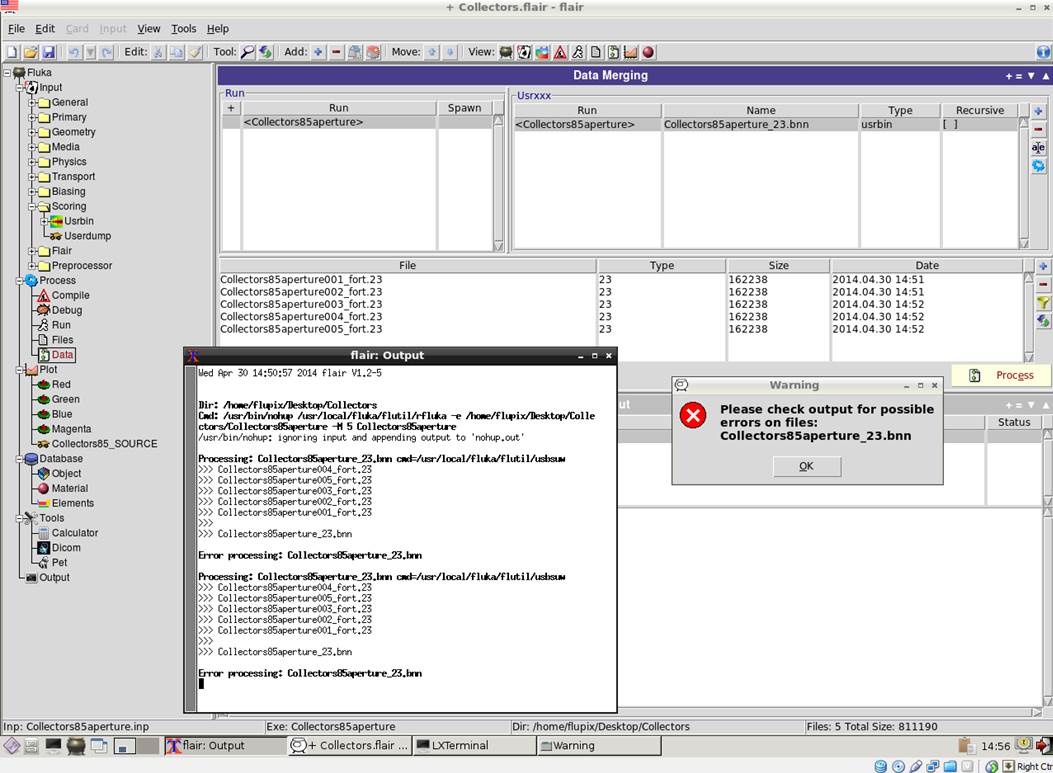

> (mentioned in the thread below), see screenshot.
>
> I have tried the solution suggested, but I am still unable to successfully
> merge USRBIN data.
>
>
>
> Is anyone able to offer any other suggestions, or possible reasons for the
> problems?
>
> I am using the current version of FLUPIX flupix-2011:2b-5_flair-1.2-5.iso
> and didn’t used to have any problems in the previous version.
>
>
>
> My input file is attached, in case that is also relevant. I have also
> tried testing with a the tutorial files and have re-read my course notes,
> but I am now at a loss as to what is wrong…
>
>
>
> Many thanks for any further suggestions you are able to give,
>
> Hayley
>
>
>
>
>
> Hayley Smith
>
>
>
> Accelerator Physicist
>
> ISIS Facility
>
> Rutherford Appleton Laboratory
>
> Harwell Oxford
>
> OX11 0QX
>
>
>
> 01235 445524
>
> hayley.smith_at_stfc.ac.uk
>
>
>
>
>
>
>
>
>
>
>
> *From:* nikhil shetty [mailto:nikhil.nitk_at_gmail.com]
> *Sent:* 29 March 2014 14:18
> *To:* 徐妙华
> *Cc:* fluka-discuss
> *Subject:* Re: Re: [fluka-discuss]: Problems when I tried to merge the
> USRBIN datasin flair
>
>
>
> I refer you to this thread, where a similar problem was treated:
> http://www.fluka.org/web_archive/earchive/new-fluka-discuss/3380.html
>
> It seems for some reason the executable required to postprocess USRBIN
> files is missing. I suggest you to try the following steps:
>
> 1) cd /usr/local/fluka/flutil
> 2) $FLUPRO/flutil/lfluka -o usbsuw usbsuw.f
> 3) $FLUPRO/flutil/lfluka -o usbrea usbrea.f
>
> Now try merging the USRBIN files again. Hope it works.
>
> Cheers,
>
> -Nikhil
>
>
>
> On Sat, Mar 29, 2014 at 2:01 AM, 徐妙华 <mhxu_at_cumtb.edu.cn> wrote:
>
> Nikhil,
> When I merged the USRBIN data in "tutorial.flair", the output window said
> "Error processing: tutorial_usrbin_50".
>
>
> As in the case of "example.inp", it said almost the same: "Error
> procssing: example_50.bnn".
>
> Thanks!
>
>
>
> Miaohua
>
>
>
> ---------
>
> ----邮件原文----
> *发件人：*nikhil shetty <nikhil.nitk_at_gmail.com>
> *收件人：*徐妙华<mhxu_at_cumtb.edu.cn>
> *抄 送: *fluka-discuss <fluka-discuss_at_fluka.org>
> *发送时间：*2014-03-29 01:46:03
> *主题：*
> Re: [fluka-discuss]: Problems when I tried to merge the USRBIN datasin flair
>
>
>
> Miaohua,
>
>
>
> Did you actually check for the error message in the output? What does it
> say?
>
>
>
> Cheers,
>
> Nikhil
>
> On Friday, March 28, 2014, 徐妙华 <mhxu_at_cumtb.edu.cn> wrote:
>
> Dear FLAIR experts,
>
> I ran the "tutorial.flair" with the lastest flair version in the virtual
> box. There were no problems in the run simulation.And also when I merged
> the data of "tutorial_usrcoll_51" and the "tutorial_resnuclei",everything
> was good. I can get the merged data file and succeed in plotting. However,

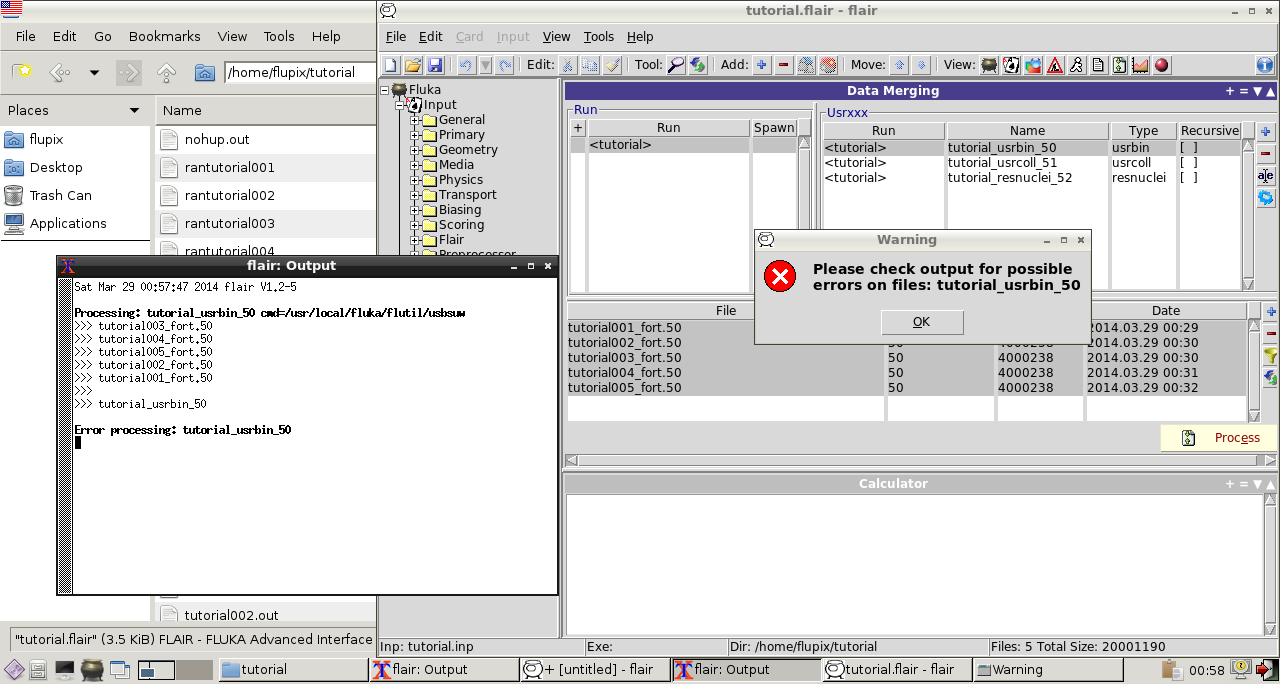

> when I tried to merge the data of "USRBIN", I got the message "Please check
> output for possible errors on file: tutorial_usrbin_50", and then "No files
> were created". I tried the other input files, such as the "example.inp".
> The merging of "USRBDX" and the "USRTRACK" data is just fine, while there
> is always problems when I merged the "USRBIN" data.
>
> This error seemed quite strange for me. Can anyone tell me the reason and
> how to solve this problem?
> Thank you very much!
>
> Miaohua
>
>
>
> ---------
>
>
>
>
>
(image/png attachment: flair.png)
(image/jpeg attachment: image003.jpg)
