Date: Tue, 11 Aug 2015 09:21:26 -0400 (EDT)

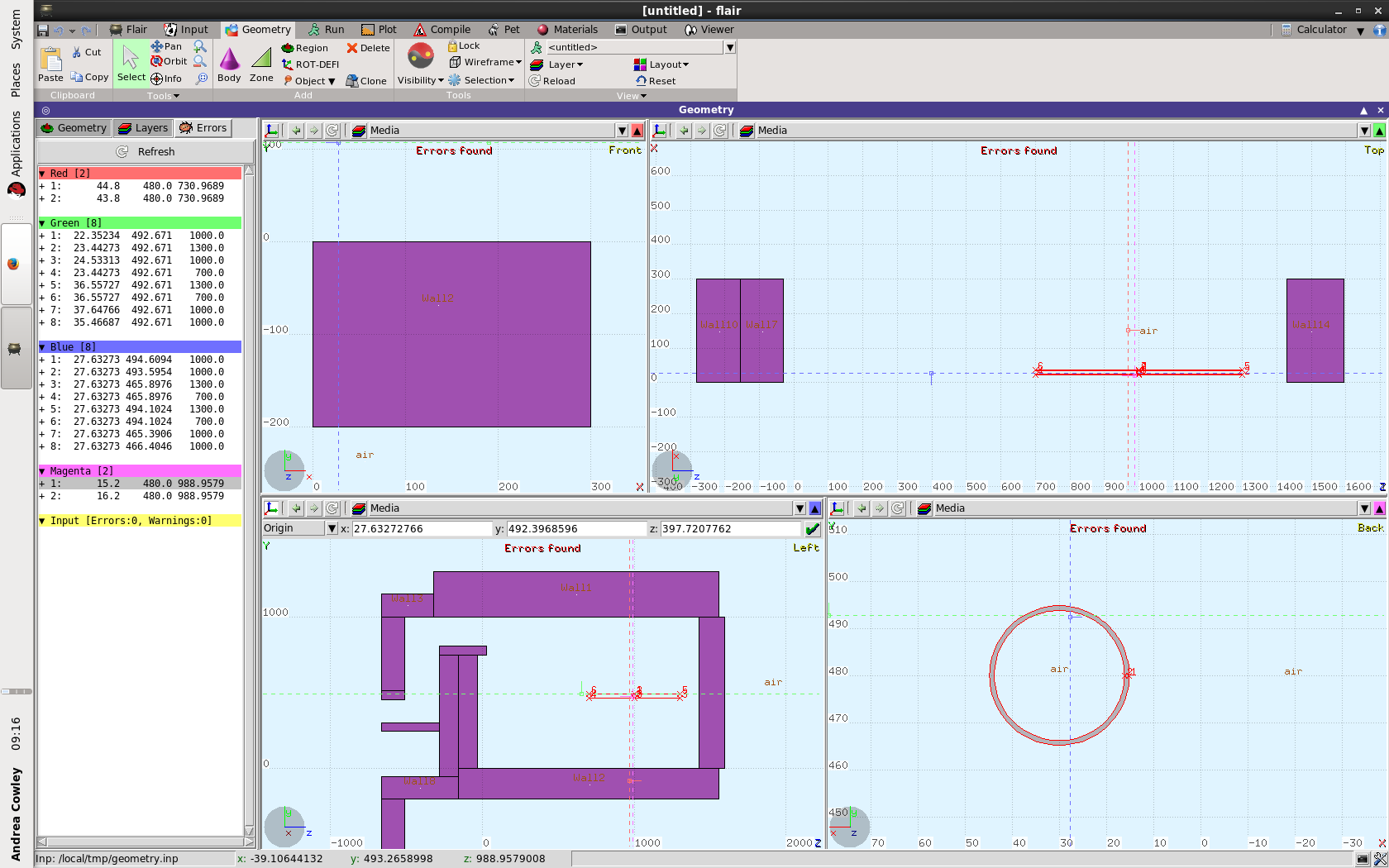

Sure, I've taken a photo of the geometry viewports, as well as the error
panes so that you can locate it on your copy. It appears to be a region
overlapping with the pipe region. The error window can only tell you about
errors that it can "see" from the current viewport perspectives, so in
order to track down all geometry problems, it can be helpful to scroll
through your geometry slowly. Don't rely on the error window too much,
however, as it doesn't know everything. It's always a good idea to do a
reality check on your geometry!
Best of luck,
-Andrea
> Dear Andrea,
>
> Can you send me a screenshot with this error you found? I have nor error
> or warning when I open my input so is hard to fix it.
> Thank you for your advices!
>
>
> Regards,
>
> Roxana
> ________________________________________
> From: Andrea Cowley [acowley_at_jlab.org]
> Sent: Monday, August 03, 2015 7:01 PM
> To: Roxana-georgiana Rata U1179323
> Cc: fluka-discuss_at_fluka.org
> Subject: Re: [fluka-discuss]: beam position
>
> Roxana,
>
> I opened up your input file in flair and noticed that it has some geometry
> errors at x-layer 30 around the thin walls on the right, interior side.
> Also, if you are having trouble with positioning the beam, it can be
> helpful to do a single run with a small number of particles with your
> USRBIN card set to detect BEAMPART. That should allow you to visualize the
> changes to your BEAMPOS card.
>
> Best of luck,
>
> Andrea
> acowley_at_jlab.org
>
>> Dear FLUKA experts,
>>
>> I have to calculate the neutron dose coming up from an Al beam tube. I
>> placed the beam tube in the right side of the room, as the proton beam
>> is
>> coming from the right. I've set the beam parameters using the BEAMPOS
>> card, but I am not sure if is working or not, because my final results
>> showed that the highest dose occurs in the left side of the room and not
>> in the right. In the left side should be only air and nothing else.
>> Could someone check my geometry and see that I am doing wrong? Maybe I
>> didn't place the beam tube correctly?
>> I attached my input and one of the plots with the dose.
>> Should be better to use a source file to set the beam parameters? If
>> yes,
>> could someone help me with this as I didn't use a source file before?
>>
>> Thank you!
>>
>> Regards,
>>
>> Roxana
